TECH PUBLIC

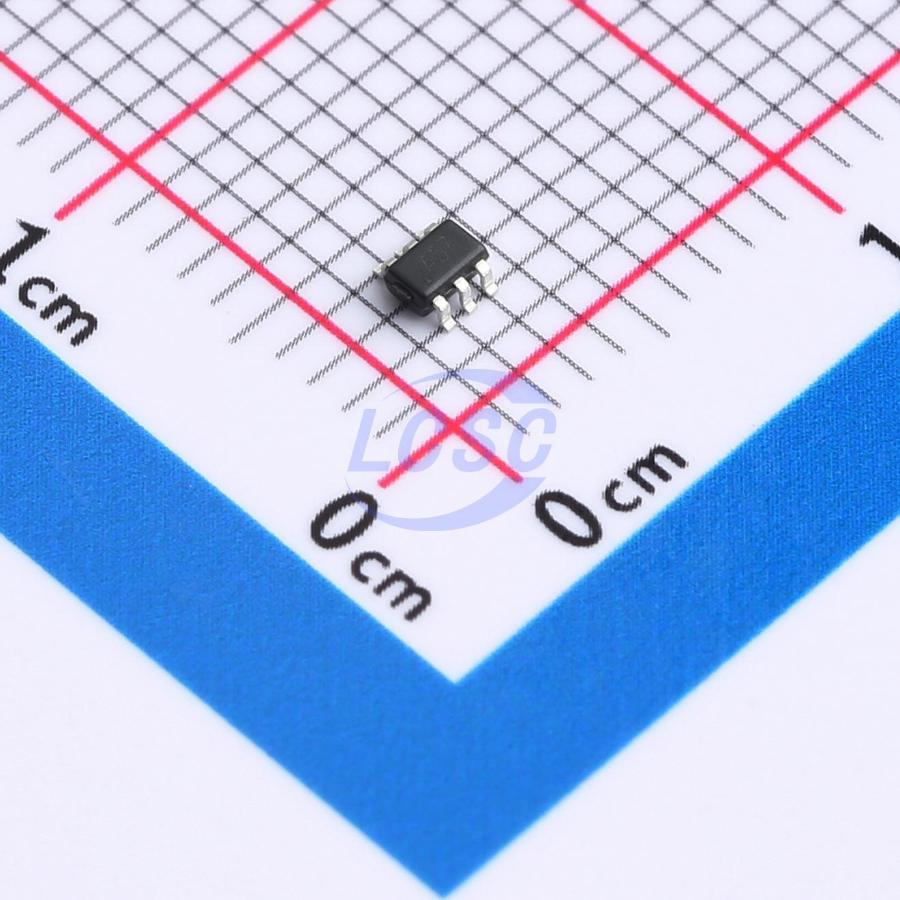

NLAS4157DFT2G-TP

1.8Ω@5.5V 1.5V~5.5V 1 SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: NLAS4157DFT2G-TP
Store part #: C42370507
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,180 in stock

#C42370507

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.48	₹62.40
50+	₹9.87	₹493.50
150+	₹8.57	₹1,285.50
500+	₹7.59	₹3,795.00
2,500+	₹6.81	₹17,025.00
5,000+	₹6.42	₹32,100.00

Quantity (min 5, multiples of 5)

5 × ₹12.48

₹62.40

excl. GST

₹73.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NLAS4157DFT2G-TP

₹62.40 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 1.8Ω@5.5V
Voltage - Supply: 1.5V~5.5V
Number of Channels: 1
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 1.5Ω when A = 5V
1.8V Logic Compatible
Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-Isolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2uA)
With Very Wide Supply Range (1.5V ~ 5.5V)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TS5A3159DCKR-TP#C46472234TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	10,345	₹15.86 · 10,345 in stock	View
TPADG849YKSZ#C47117593TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	427	₹62.08 · 427 in stock	View
TPG4599C6-1#C47117615TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	500	₹27.10 · 500 in stock	View
PI5A4157CEX-TP#C42370513TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,475	₹12.09 · 2,475 in stock	View
TPSGM4157YC6#C42370558TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,295	₹12.87 · 2,295 in stock	View
