TECH PUBLIC

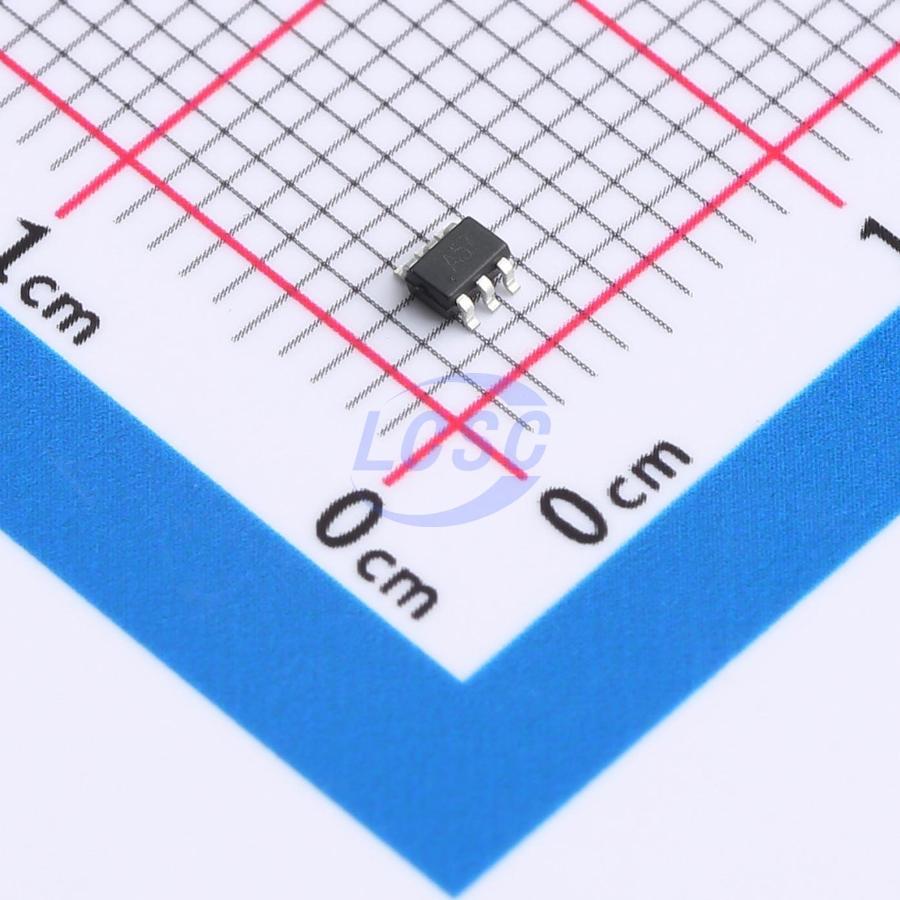

PI5A4157CEX-TP

1.5Ω 1.5V~5.5V 1 SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: PI5A4157CEX-TP
Store part #: C42370513
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,475 in stock

#C42370513

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹12.09	₹60.45
50+	₹9.57	₹478.50
150+	₹8.30	₹1,245.00
500+	₹7.34	₹3,670.00
2,500+	₹6.59	₹16,475.00
5,000+	₹6.20	₹31,000.00

Quantity (min 5, multiples of 5)

5 × ₹12.09

₹60.45

excl. GST

₹71.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

PI5A4157CEX-TP

₹60.45 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 1.5Ω
Voltage - Supply: 1.5V~5.5V
Number of Channels: 1
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 1.5Ω when A = 5V
1.8V Logic Compatible Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-Isolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
