onsemiDatasheet (PDF)

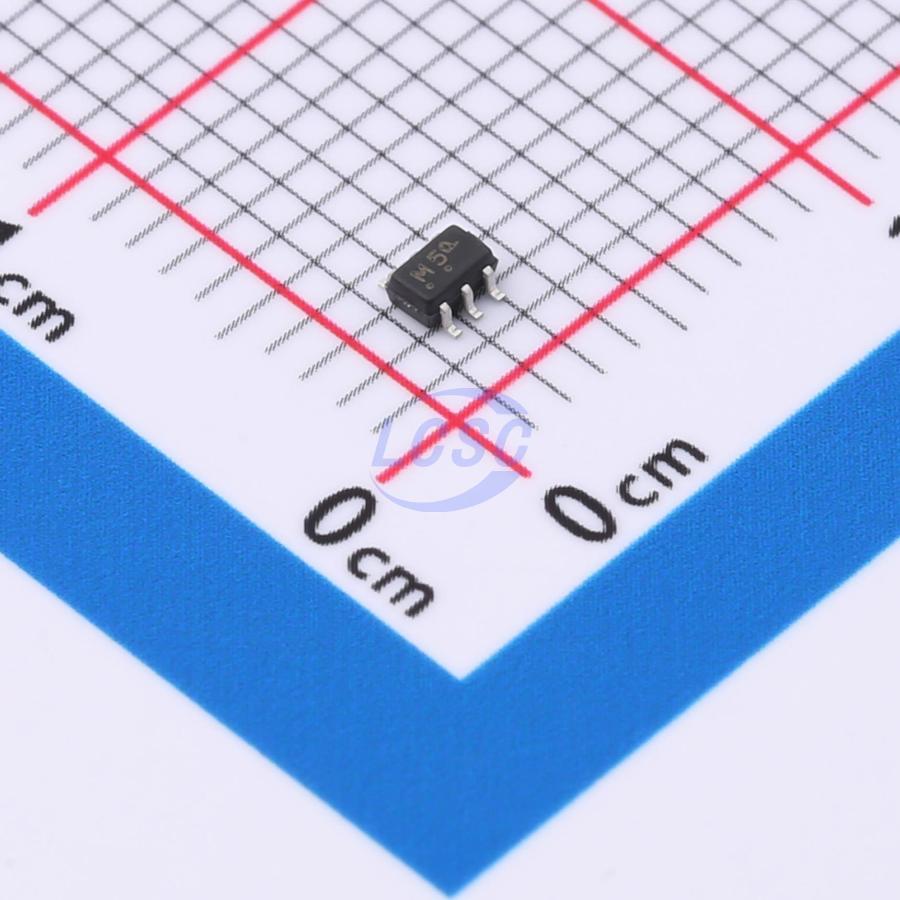

NLV27WZ04DFT2G
1uA 1.65V~5.5V 2 3.6ns@5V,50pF SC-88 Gates and Inverters RoHS
SC-88ROHS3 CompliantDiscontinued
Dual Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NLV27WZ04DFT2G
- Store part #
- C604210
- Package / case
- SC-88
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,059 in stock
#C604210
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.75 | ₹59.75 |
| 10+ | ₹53.41 | ₹534.10 |
| 30+ | ₹50.25 | ₹1,507.50 |
| 100+ | ₹47.07 | ₹4,707.00 |
| 500+ | ₹45.18 | ₹22,590.00 |
| 1,000+ | ₹44.33 | ₹44,330.00 |
1 × ₹59.75
₹59.75
excl. GST
₹70.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NLV27WZ04DFT2G
₹59.75 for 1 + GST
Specifications
- Features
- Power shutdown protection
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 27WZ
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Propagation Delay
- 3.6ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
The NL27WZ04 is a high performance dual inverter operating from a 1.65 to 5.5 V supply.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 2.0 ns tPD at VCC = 5 V (Typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Sink 32 mA at 4.5 V
- Available in SC−88, SC−74 and UDFN6 Packages
- Chip Complexity <100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
