onsemiDatasheet (PDF)

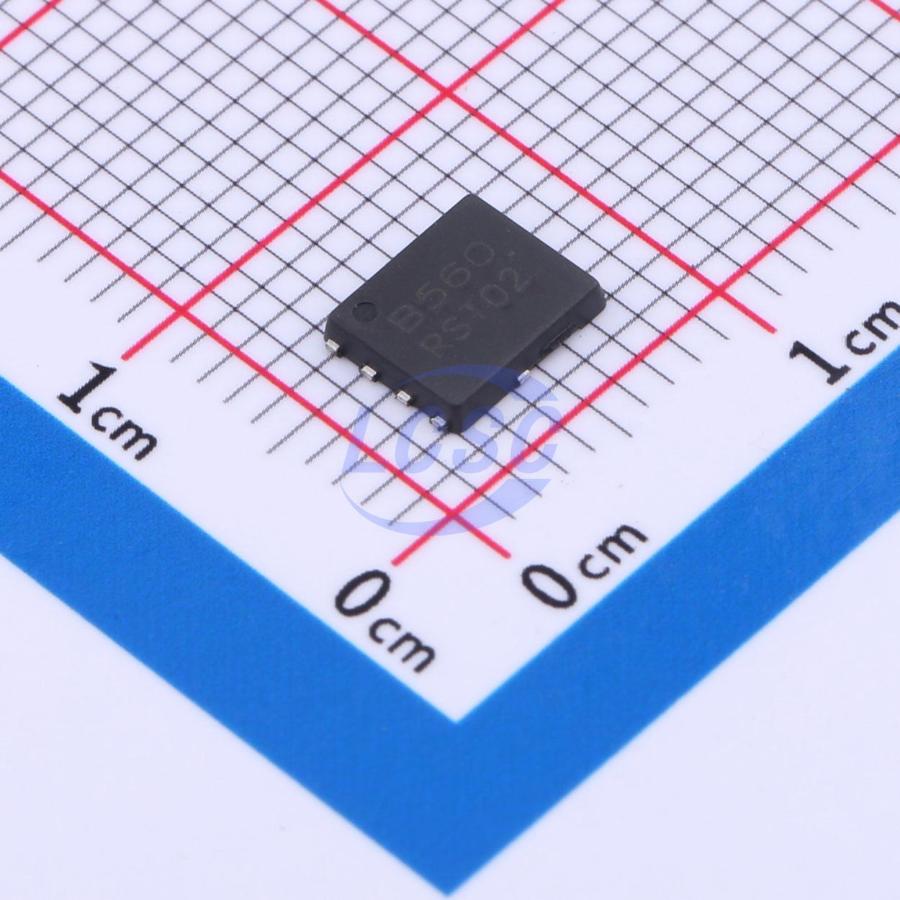

NRVB560MFST3G
Diode Independent 60V 5A Surface Mount DFN-5(5x6)
DFN-5(5x6)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DFN-5(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- NRVB560MFST3G
- Store part #
- C893753
- Package / case
- DFN-5(5x6)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
129 in stock
#C893753
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.77 | ₹138.77 |
| 10+ | ₹114.27 | ₹1,142.70 |
| 30+ | ₹100.61 | ₹3,018.30 |
| 100+ | ₹85.43 | ₹8,543.00 |
| 500+ | ₹78.49 | ₹39,245.00 |
| 1,000+ | ₹75.46 | ₹75,460.00 |
1 × ₹138.77
₹138.77
excl. GST
₹163.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NRVB560MFST3G
₹138.77 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 650mV@5A
- Reverse Leakage Current (Ir)
- 15uA@60V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NRTS3060MFST3G#C3757827onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 18 | ₹202.52 · 18 in stock | View |
 | MBR5H100MFST1G#C152503onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 108 | ₹140.38 · 108 in stock | View |
 | NRVTS30100MFST3G#C3759181onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 80 | ₹285.70 · 80 in stock | View |
| NRVB10100MFST1G#C900218onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 7 | ₹305.43 · 7 in stock | View | |
| NRVB8H100MFSWFT3G#C893757onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | On request | ₹43.10 · 0 in stock | View | |
