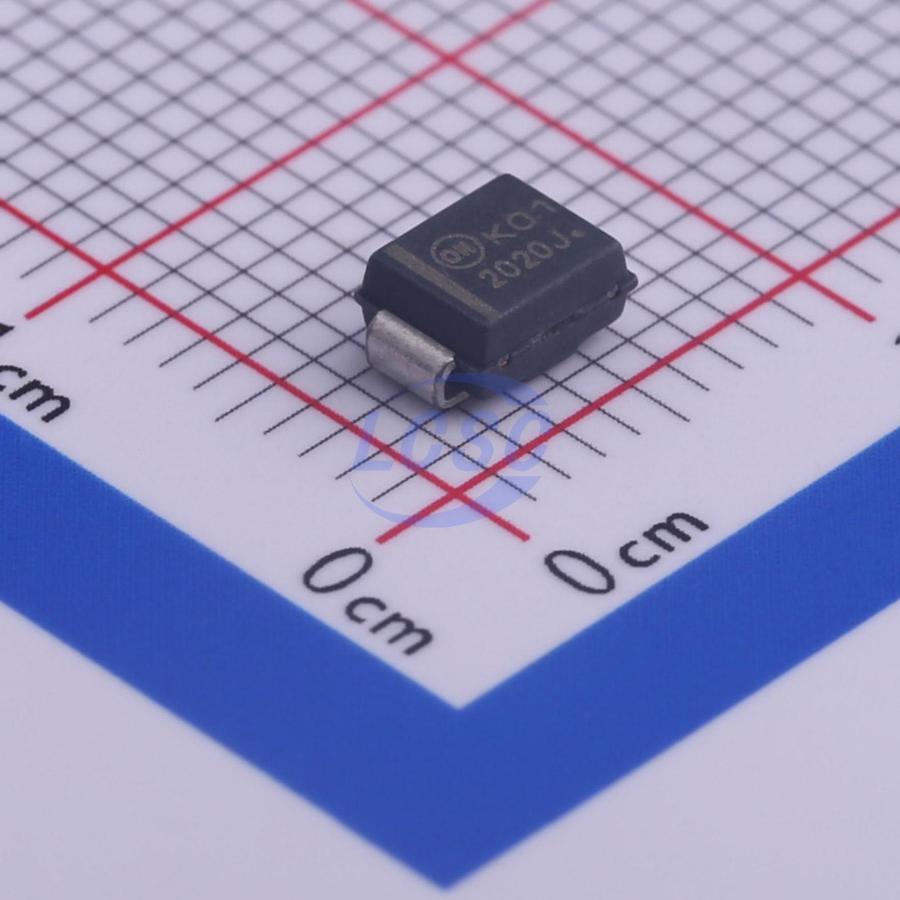

NSIC2020JBT3G

PWM 20mA 1 DO-214AA(SMB) Current Regulation/Management RoHS

DO-214AA(SMB)ROHS3 CompliantActive

Constant Current Regulator & LED Driver for A/C off-line Applications

Manufacturer: onsemi
Manufacturer part #: NSIC2020JBT3G
Store part #: C457743
Package / case: DO-214AA(SMB)
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,896 in stock

#C457743

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹74.04	₹74.04
10+	₹58.19	₹581.90
30+	₹51.45	₹1,543.50
100+	₹42.98	₹4,298.00
500+	₹39.31	₹19,655.00
1,000+	₹36.91	₹36,910.00

Quantity (min 1)

1 × ₹74.04

₹74.04

excl. GST

₹87.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

NSIC2020JBT3G

₹74.04 for 1 + GST

Specifications

Features: Over-Temperature Protection (OTP);High voltage fast start
Dimming: PWM
Output Current: 20mA
Number of Channels: 1
Input Voltage (Vin): 120V;-
Operating Temperature: -55℃~+175℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.127 g

Overview

The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost−effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on Self−Biased Transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents. The CCR turns on immediately and is at 45% of regulation with only 0.5 V Vak. It requires no external components allowing it to be designed as a high or low−side regulator. The 120 V anode−cathode voltage rating is designed to withstand the high peak voltage incurred in A/C offline applications. The high anode−cathode voltage rating withstands surges common in Automotive, Industrial and Commercial Signage applications.

Applications

Automobile: Chevron Side Mirror Markers, Cluster, Displays & Instruments Backlighting, CHMSL, Map Light
AC Lighting Panels, Display Signage, Decorative Lighting, Channel Lettering

Key features

Robust Power Package: 3 W
Wide Operating Voltage Range
Immediate Turn-On Voltage Surge Suppressing − Protecting LEDs
UL94−V0 Certified
SBT (Self−Biased Transistor) Technology
Negative Temperature Coefficient
Also available in 50 mA (NSIC2050JBT3G) and 30 mA (NSIC2030JBT3G)
NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
