onsemiDatasheet (PDF)

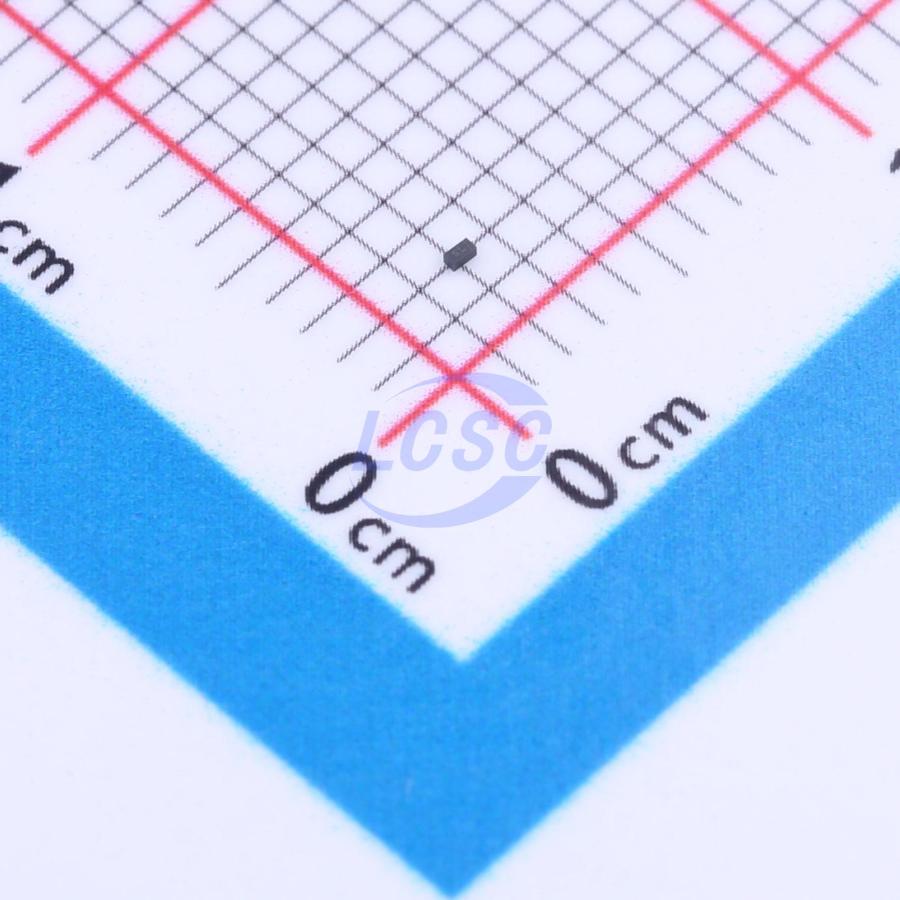

NSR01L30MXT5G
Diode 30V 100mA Surface Mount X3DFN
X3DFNROHS3 CompliantActive
DIODE SCHOTTKY 30V X3DFN
- Manufacturer
- onsemi
- Manufacturer part #
- NSR01L30MXT5G
- Store part #
- C604336
- Package / case
- X3DFN
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C604336
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.15 | ₹90.75 |
| 50+ | ₹14.62 | ₹731.00 |
| 150+ | ₹12.85 | ₹1,927.50 |
| 500+ | ₹11.52 | ₹5,760.00 |
| 2,500+ | ₹9.39 | ₹23,475.00 |
| 5,000+ | ₹8.86 | ₹44,300.00 |
5 × ₹18.15
₹90.75
excl. GST
₹107.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
NSR01L30MXT5G
₹90.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 460mV@10mA
- Reverse Leakage Current (Ir)
- 500nA@30V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
These Schottky barrier diodes are optimized for low forward voltage drop and low leakage current.
Applications
- LCD and Keypad Backlighting
- Camera Photo Flash
- Buck and Boost dc-dc Converters
- Reverse Voltage and Current Protection
- Clamping & Protection
- Mobile Handsets
- MP3 Players
- Digital Camera and Camcorders
- Notebook PCs & PDAs
- GPS
Key features
- Very Low Forward Voltage Drop – 350 mV @ 1 mA
- Low Reverse Current – 0.2 μA @ 10 V
- 100 mA of Continuous Forward Current
- ESD Rating – Human Body Model: Class 3B – Machine Model: Class C
- This is a Halide-Free Device
- This is a Pb-Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPB01A30-0201-A#C2858688TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 500 | ₹4.15 · 500 in stock | View |
