onsemiDatasheet (PDF)

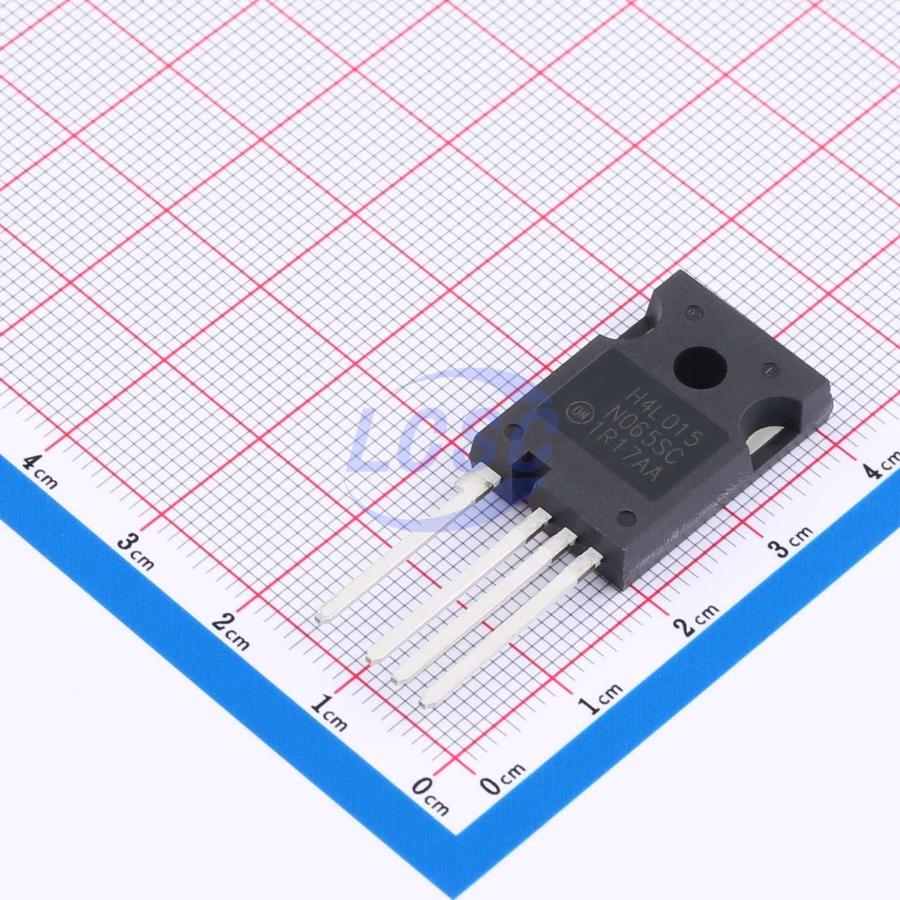

NTH4L015N065SC1
N-Channel 650V 142A 500W Through Hole TO-247-4L
TO-247-4LROHS3 CompliantActive
SICFET N-CH 650V 142A TO-247-4L
- Manufacturer
- onsemi
- Manufacturer part #
- NTH4L015N065SC1
- Store part #
- C2902167
- Package / case
- TO-247-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C2902167
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,625.40 | ₹3,625.40 |
| 30+ | ₹3,431.36 | ₹1,02,940.80 |
1 × ₹3,625.40
₹3,625.40
excl. GST
₹4,277.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
NTH4L015N065SC1
₹3,625.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 142A
- Ciss-Input Capacitance
- 4.79nF
- Pd - Power Dissipation
- 500W
- Reverse Transfer Capacitance (Crss)
- 33pF
- RDS(on)
- 18mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 283nC
- Gate Threshold Voltage (Vgs(th))
- 4.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.4 g
Overview
Applications
- SMPS (Switching Mode Power Supplies)
- Solar Inverters
- UPS (Uninterruptable Power Supplies)
- Energy Storages
Key features
- Typ. RDS(on) = 12 mΩ @ VGS = 18 V
- Typ. RDS(on) = 15 mΩ @ VGS = 15 V
- Ultra Low Gate Charge (QG(tot) = 283 nC)
- High Speed Switching with Low Capacitance (Coss = 430 pF)
- 100% Avalanche Tested
- TJ = 175°C
- These Devices are Pb - Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT165N1200AKZ#C47326418HTCSEMI · TO-247-4L | HTCSEMI | TO-247-4L | 14 | ₹1,844.29 · 14 in stock | View |
 | SP100N65CTK#C53374812Siliup · TO-247-4L | Siliup | TO-247-4L | 130 | ₹997.78 · 130 in stock | View |
 | LGE3M14120Q#C28148572LGE · TO-247-4 | LGE | TO-247-4 | 2 | ₹3,661.12 · 2 in stock | View |
 | SG2M014120LJ#C52109935Sichainsemi · TO-247-4L | Sichainsemi | TO-247-4L | 2 | ₹1,384.80 · 2 in stock | View |
| IMZA75R008M1HXKSA1#C28122003Infineon · PG-TO-247-4 | Infineon | PG-TO-247-4 | 1 | ₹5,263.60 · 1 in stock | View | |
