onsemiDatasheet (PDF)

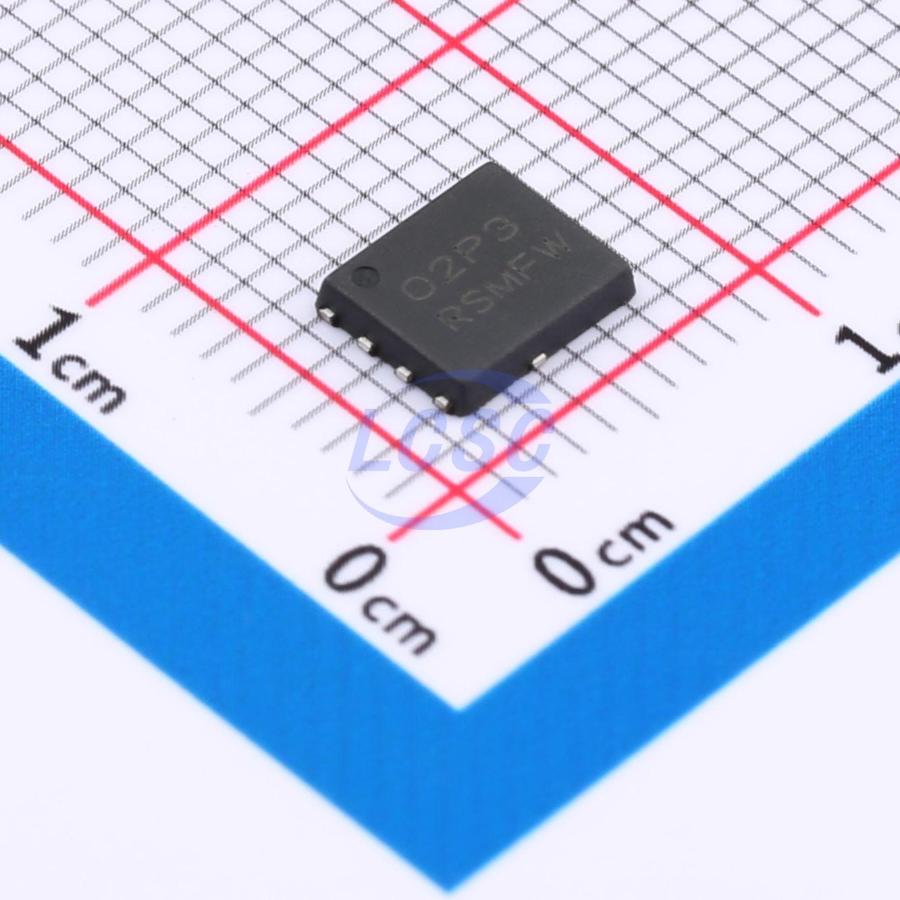

NTMFS002P03P8ZT1G
138.9W 30V 263A 1.4mΩ@10V 1 P-Channel P-Channel SO-8FL-EP-5.8mm Single FETs, MOSFETs RoHS
SO-8FL-EP-5.8mmROHS3 CompliantActive
P-Channel MOSFET, Current: -263A, Breakdown Voltage: -30V
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS002P03P8ZT1G
- Store part #
- C2902170
- Package / case
- SO-8FL-EP-5.8mm
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,422 in stock
#C2902170
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹311.66 | ₹311.66 |
| 10+ | ₹266.73 | ₹2,667.30 |
| 30+ | ₹238.51 | ₹7,155.30 |
| 100+ | ₹209.66 | ₹20,966.00 |
| 500+ | ₹196.62 | ₹98,310.00 |
| 1,500+ | ₹190.99 | ₹2,86,485.00 |
1 × ₹311.66
₹311.66
excl. GST
₹367.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS002P03P8ZT1G
₹311.66 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 5.28nF
- Ciss-Input Capacitance
- 14.95nF
- Pd - Power Dissipation
- 138.9W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 263A
- Reverse Transfer Capacitance (Crss)
- 4.87nF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 365nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
