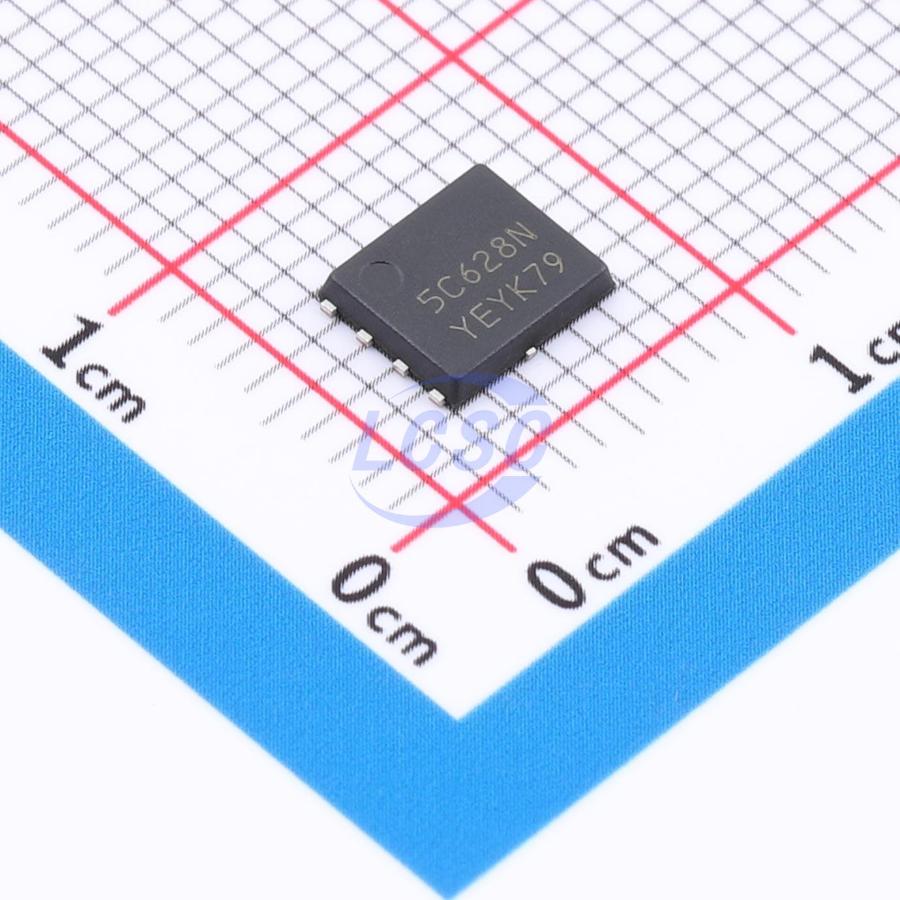

NTMFS5C628NT1G
110W 60V 150A 2.3mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
MOSFET N-CH 60V 150A DFN-5(5.9x4.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS5C628NT1G
- Store part #
- C900310
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C900310
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹358.52 | ₹358.52 |
| 10+ | ₹317.47 | ₹3,174.70 |
| 30+ | ₹291.68 | ₹8,750.40 |
| 100+ | ₹265.46 | ₹26,546.00 |
| 500+ | ₹253.42 | ₹1,26,710.00 |
| 1,500+ | ₹248.26 | ₹3,72,390.00 |
1 × ₹358.52
₹358.52
excl. GST
₹423.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS5C628NT1G
₹358.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.68nF
- Ciss-Input Capacitance
- 2.63nF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 150A
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 2.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
Applications
- CPU power supply, DC-DC converter
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low on-resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized driving losses
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS6H800NT1G#C604456onsemi · DFN5(5x6) | onsemi | DFN5(5x6) | 10 | ₹445.30 · 10 in stock | View |
 | NVMFS6H801NLT1G#C900465onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹506.64 · 20 in stock | View |
 | NVMFS6H800NLWFT1G#C900464onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 101 | ₹947.43 · 101 in stock | View |
 | NVMFS6H801NT1G#C604623onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 41 | ₹426.85 · 41 in stock | View |
 | NVMFS5C612NLT1G#C900444onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 10 | ₹1,104.10 · 10 in stock | View |
