onsemiDatasheet (PDF)

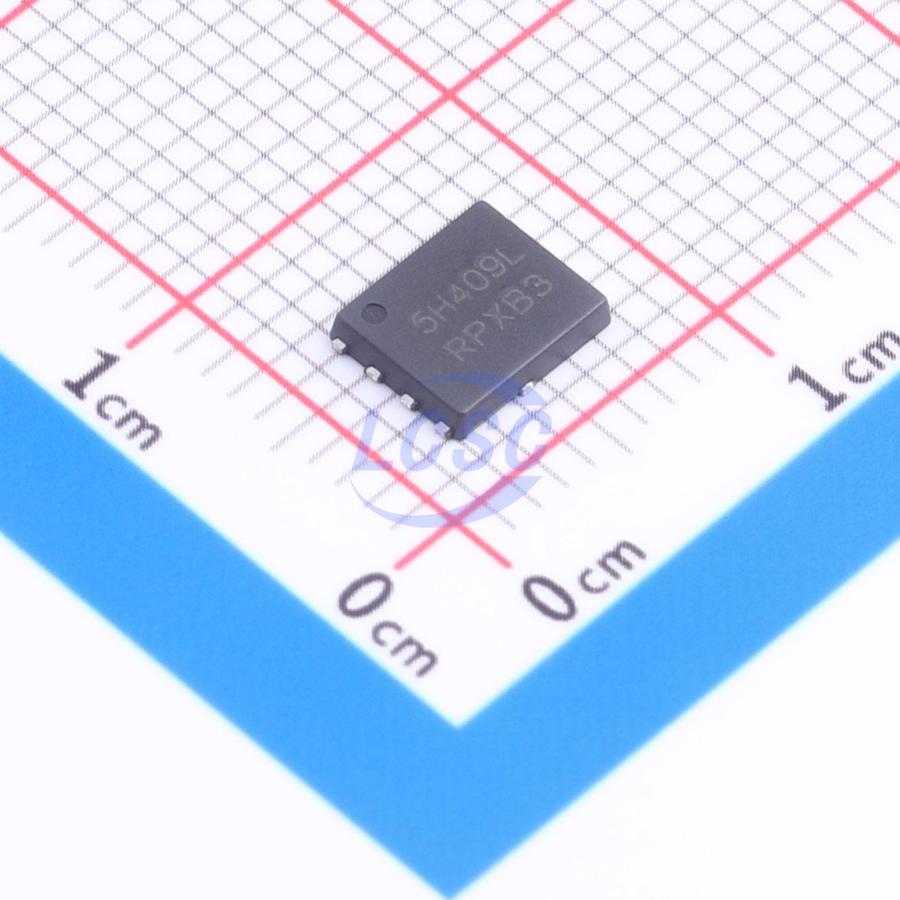

NTMFS5H409NLT3G
40V 1.1mΩ@10V 1 N-channel N-Channel DFN-5(5x6) Single FETs, MOSFETs RoHS
DFN-5(5x6)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS5H409NLT3G
- Store part #
- C604447
- Package / case
- DFN-5(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C604447
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹314.68 | ₹314.68 |
| 10+ | ₹277.92 | ₹2,779.20 |
| 30+ | ₹254.93 | ₹7,647.90 |
| 100+ | ₹231.27 | ₹23,127.00 |
| 500+ | ₹220.74 | ₹1,10,370.00 |
| 1,000+ | ₹216.02 | ₹2,16,020.00 |
1 × ₹314.68
₹314.68
excl. GST
₹371.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS5H409NLT3G
₹314.68 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.4nF
- Ciss-Input Capacitance
- 5.7nF
- Pd - Power Dissipation
- 3.2W;140W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 41A;270A
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 1.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 89nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low on-resistance RDS(on) for reduced conduction losses
- Low gate charge QG and capacitance for reduced driving losses
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS5C404NLT1G#C604432onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 1,443 | ₹346.26 · 1,443 in stock | View |
 | NVMFS5C604NLWFT1G#C900443onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 10 | ₹868.60 · 10 in stock | View |
 | NVMFS5C420NLWFT1G#C2902073onsemi · DFN-5(5.1x6.1) | onsemi | DFN-5(5.1x6.1) | 17 | ₹466.21 · 17 in stock | View |
 | NTMFS5C404NT1G#C604433onsemi · DFN5(5x6) | onsemi | DFN5(5x6) | 5 | ₹1,507.53 · 5 in stock | View |
 | NVMFS5C604NLT1G#C513058onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 9 | ₹1,941.32 · 9 in stock | View |
