onsemiDatasheet (PDF)

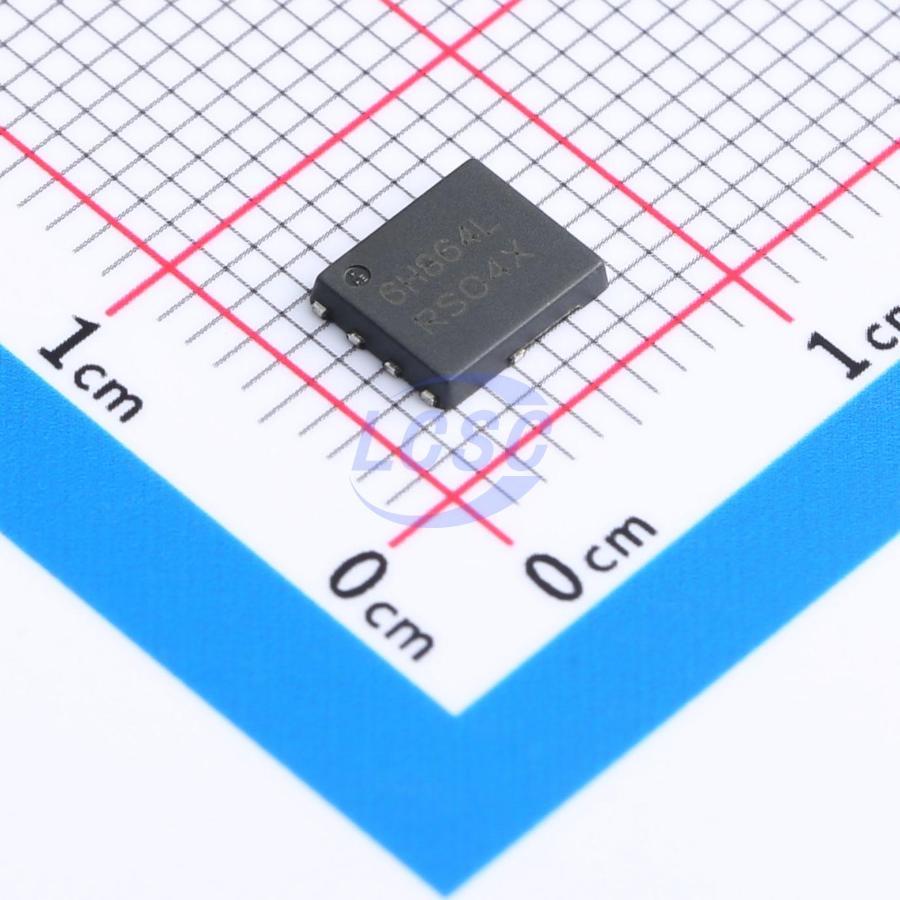

NTMFS6H864NLT1G
N-Channel 80V 22A 3.5W DFN5(5x6)
DFN5(5x6)ROHS3 CompliantActive
MOSFET N-CH 80V 22A DFN5(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS6H864NLT1G
- Store part #
- C900321
- Package / case
- DFN5(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C900321
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.83 | ₹193.83 |
| 10+ | ₹164.13 | ₹1,641.30 |
| 30+ | ₹147.87 | ₹4,436.10 |
| 100+ | ₹129.44 | ₹12,944.00 |
| 500+ | ₹121.20 | ₹60,600.00 |
| 1,500+ | ₹117.52 | ₹1,76,280.00 |
1 × ₹193.83
₹193.83
excl. GST
₹228.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS6H864NLT1G
₹193.83 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 55pF
- Ciss-Input Capacitance
- 431pF
- Pd - Power Dissipation
- 3.5W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 22A
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 29mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb-Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS6H864NLWFT1G#C900490onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 10 | ₹337.89 · 10 in stock | View |
 | NVMFS6H864NWFT1G#C900491onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 94 | ₹169.78 · 94 in stock | View |
 | NVMFS6H800NLWFT1G#C900464onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 101 | ₹947.43 · 101 in stock | View |
| NVMFWS015N10MCLT1G#C900497onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | On request | ₹131.63 · 0 in stock | View | |
 | NVMFS6H852NT1G#C604626onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 100 | ₹292.86 · 100 in stock | View |
