onsemiDatasheet (PDF)

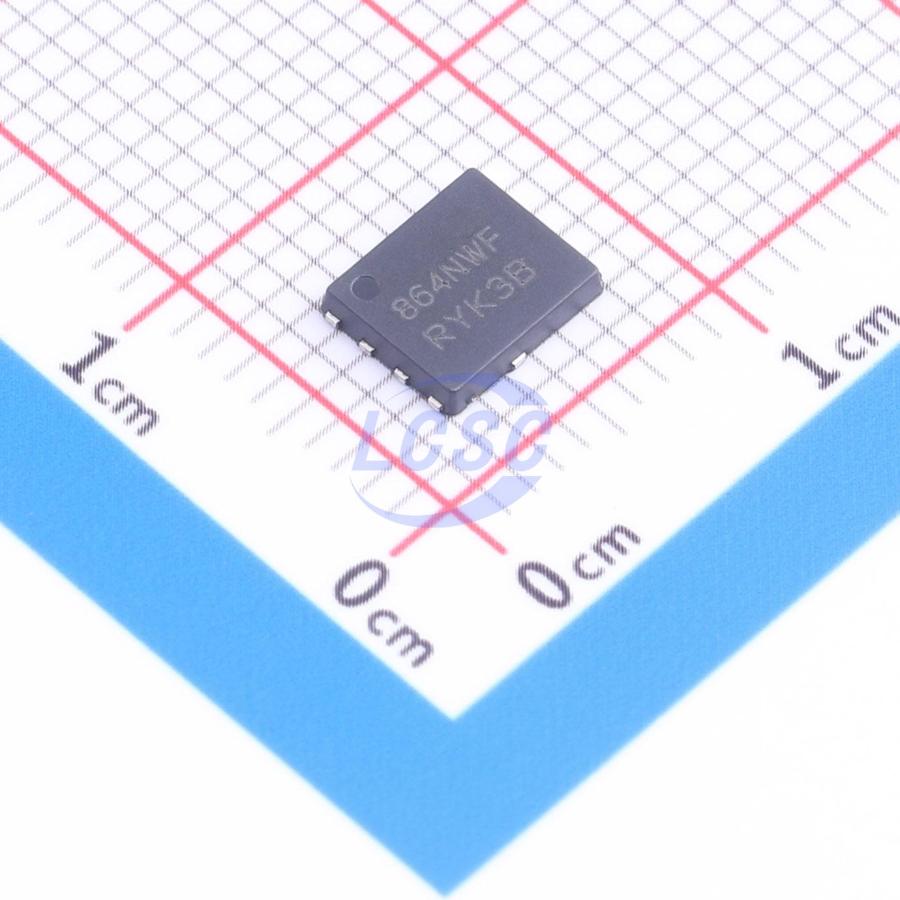

NVMFS6H864NWFT1G
33W 80V 21A 26.9mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS6H864NWFT1G
- Store part #
- C900491
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C900491
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹169.78 | ₹169.78 |
| 10+ | ₹165.85 | ₹1,658.50 |
| 30+ | ₹163.24 | ₹4,897.20 |
| 100+ | ₹160.85 | ₹16,085.00 |
1 × ₹169.78
₹169.78
excl. GST
₹200.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS6H864NWFT1G
₹169.78 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 55pF
- Ciss-Input Capacitance
- 370pF
- Pd - Power Dissipation
- 33W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 21A
- Reverse Transfer Capacitance (Crss)
- 3.7pF
- RDS(on)
- 26.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.9nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.284 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) minimizes conduction losses
- Low gate charge QG and capacitance minimize drive losses
- NVMFS6H864NWF - solderable flank option for optical inspection
- AEC-Q101 qualified with PPAP capability
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS6H864NLWFT1G#C900490onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 10 | ₹337.89 · 10 in stock | View |
 | NTMFS6H864NLT1G#C900321onsemi · DFN5(5x6) | onsemi | DFN5(5x6) | 48 | ₹193.83 · 48 in stock | View |
 | NVMFS6H852NT1G#C604626onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 100 | ₹292.86 · 100 in stock | View |
| NVMFS6H848NT1G#C900480onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 81 | ₹215.42 · 81 in stock | View | |
| NVMFS6H848NWFT1G#C900481onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 50 | ₹406.58 · 50 in stock | View | |
