VBsemi ElecDatasheet (PDF)

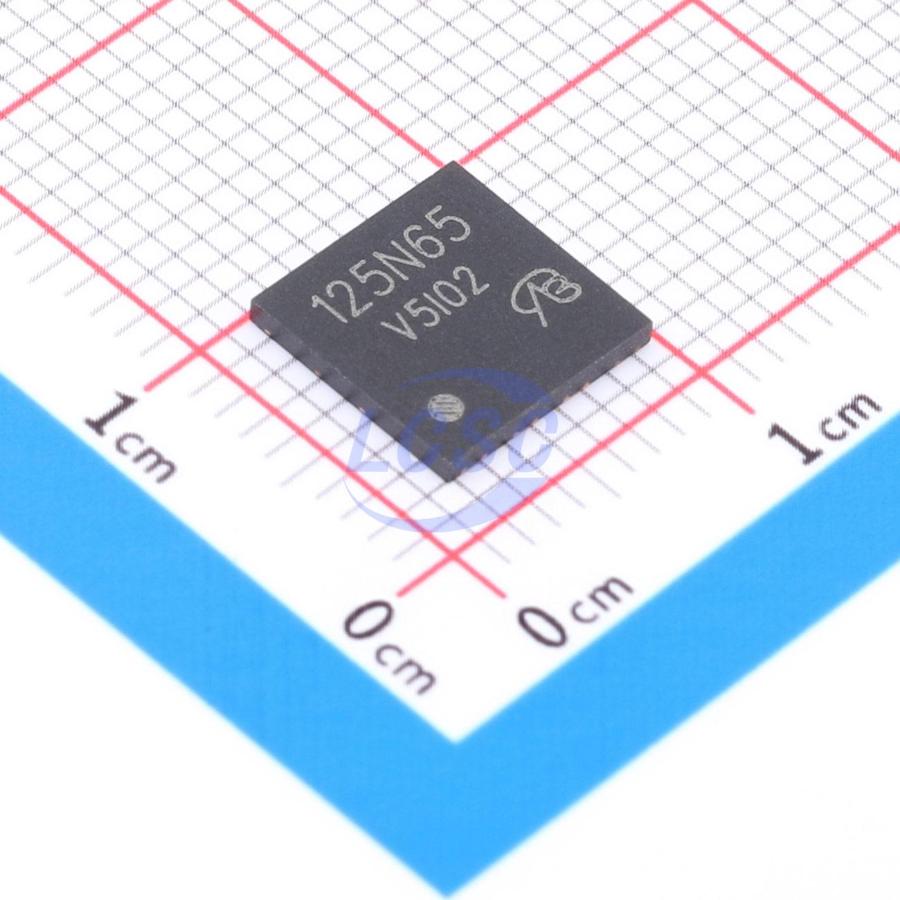

NTMT125N65S3H-VB
650V 20A 90W 160mΩ@10V 1 N-channel N-Channel DFN-8(8x8) Single FETs, MOSFETs
DFN-8(8x8)RoHSActive
MOSFET N-CH 650V 20A DFN-8(8x8)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTMT125N65S3H-VB
- Store part #
- C51822560
- Package / case
- DFN-8(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C51822560
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹436.59 | ₹436.59 |
| 10+ | ₹375.02 | ₹3,750.20 |
| 30+ | ₹336.69 | ₹10,100.70 |
| 100+ | ₹297.30 | ₹29,730.00 |
| 500+ | ₹279.43 | ₹1,39,715.00 |
| 1,000+ | ₹271.90 | ₹2,71,900.00 |
1 × ₹436.59
₹436.59
excl. GST
₹515.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMT125N65S3H-VB
₹436.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 90W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 160mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID) lamps
- Fluorescent lamp ballast lighting
Key features
- Low figure of merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPL60R199CPAUMA1-VB#C22395933VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 10 | ₹421.12 · 10 in stock | View |
 | FCMT125N65S3-VB#C50386998VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 5 | ₹436.59 · 5 in stock | View |
 | FCMT180N65S3-VB#C50386999VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 3 | ₹439.59 · 3 in stock | View |
 | FCMT199N60-VB#C50387000VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 5 | ₹439.59 · 5 in stock | View |
| IPL60R065C7AUMA1-VB#C50387006VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 5 | ₹439.59 · 5 in stock | View | |
