onsemiDatasheet (PDF)

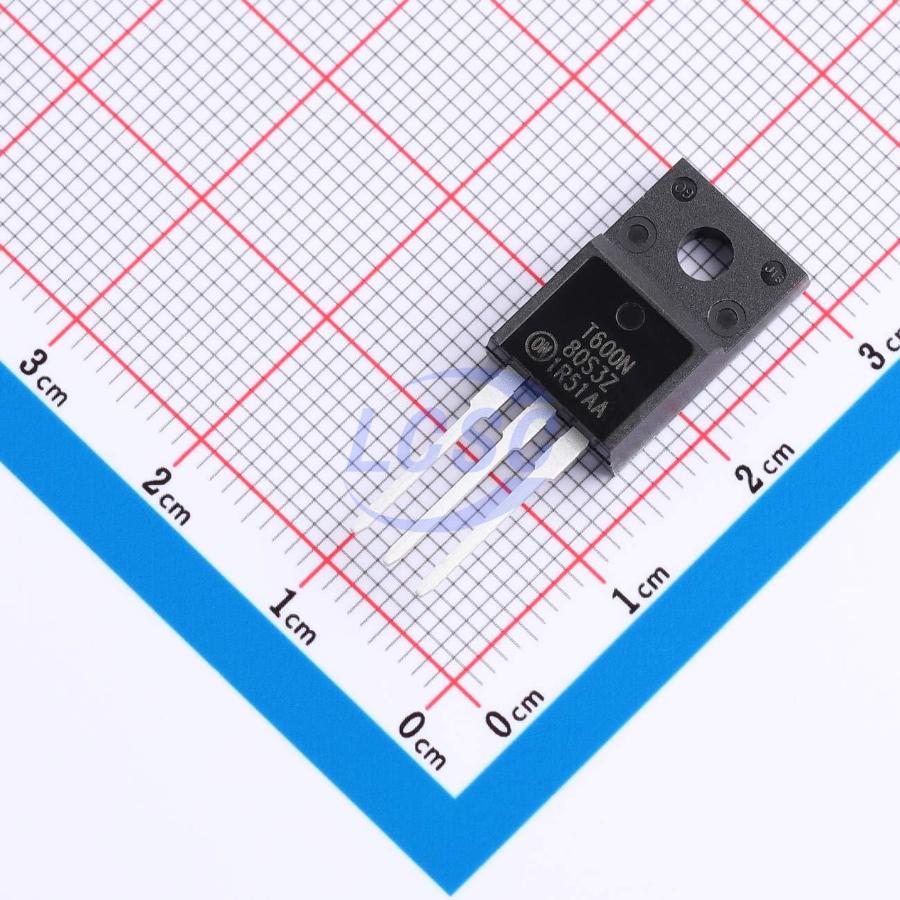

NTPF600N80S3Z
800V 8A 10W 600mΩ@10V 1 N-channel N-Channel TO-220FP Single FETs, MOSFETs RoHS
TO-220FPROHS3 CompliantActive
N-Channel, Current:8A, Voltage:800V
- Manufacturer
- onsemi
- Manufacturer part #
- NTPF600N80S3Z
- Store part #
- C3280941
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3280941
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹999.90 | ₹999.90 |
| 10+ | ₹985.93 | ₹9,859.30 |
| 30+ | ₹976.68 | ₹29,300.40 |
| 100+ | ₹967.44 | ₹96,744.00 |
1 × ₹999.90
₹999.90
excl. GST
₹1,179.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tray
NTPF600N80S3Z
₹999.90 for 1 + GST
Specifications
- Drain to Source Voltage
- 800V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 12pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 725pF
- Pd - Power Dissipation
- 10W
- RDS(on)
- 600mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 50 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.92 g
Overview
The 800 V SUPERFET III MOSFET is a high-performance MOSFET series from onsemi, offering an 800 V breakdown voltage. The new 800 V SUPERFET III MOSFET is optimized for primary-side switching in flyback converters. Its optimized design reduces switching losses and case temperature without compromising EMI performance. Additionally, an integrated Zener diode significantly enhances ESD capability. This new 800 V SUPERFET III MOSFET series delivers exceptional performance in SMPS applications — including laptop adapters, audio equipment, lighting, ATX power supplies, and industrial power supplies — enabling designs that are more efficient, more compact, cooler-running, and more reliable.
Applications
- Adapter/Charger - LED Lighting - Auxiliary Power Supply - Audio Equipment - Industrial Power Supply
Key features
- Typical R<sub>DS(on)</sub> = 550 mΩ
- Ultra-low gate charge (typical Q<sub>g</sub> = 15.5 nC)
- Low stored energy in output capacitance (E<sub>oss</sub> = 1.74 μJ at 400 V)
- 100% avalanche tested
- Zener diode for enhanced ESD protection
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMF80R650QZTH#C51891812MagnaChip Semicon · TO-220F | MagnaChip Semicon | TO-220F | 224 | ₹97.77 · 224 in stock | View |
| NTPF450N80S3Z#C2902304onsemi · TO-220F | onsemi | TO-220F | 25 | ₹294.22 · 25 in stock | View | |
 | MS11N80HCT1#C55042362MASPOWER · TO-220F | MASPOWER | TO-220F | 50 | ₹121.72 · 50 in stock | View |
 | IPA90R1K2C3#C386369Infineon · TO-220FP | Infineon | TO-220FP | 14 | ₹286.40 · 14 in stock | View |
 | MS15N100HCT1#C42445160MASPOWER · TO-220F | MASPOWER | TO-220F | 47 | ₹252.36 · 47 in stock | View |
