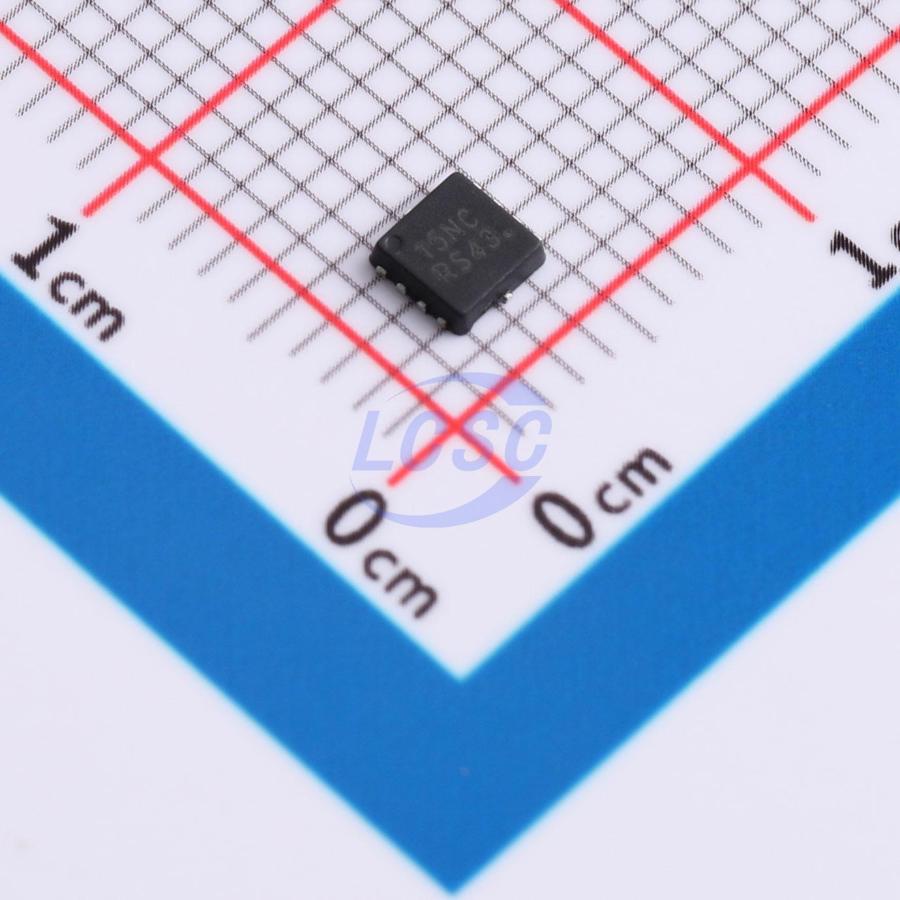

NTTFS015N04CTAG
23W 40V 27A 14.4mΩ@10V 1 N-channel N-Channel WDFN-8-EP(3.3x3.3) Single FETs, MOSFETs RoHS
WDFN-8-EP(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTTFS015N04CTAG
- Store part #
- C900336
- Package / case
- WDFN-8-EP(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C900336
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.81 | ₹95.81 |
| 10+ | ₹94.32 | ₹943.20 |
| 30+ | ₹93.46 | ₹2,803.80 |
| 100+ | ₹92.60 | ₹9,260.00 |
1 × ₹95.81
₹95.81
excl. GST
₹113.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTTFS015N04CTAG
₹95.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 165pF
- Ciss-Input Capacitance
- 325pF
- Pd - Power Dissipation
- 23W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 27A
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 14.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.101 g
Overview
Key features
- Compact package (3.3 x 3.3 mm) for space-constrained designs
- Low on-resistance RDS(on) to minimize conduction losses
- Low capacitance to minimize driving losses
- Lead-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVTFS6H850NTAG#C604649onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 16 | ₹131.39 · 16 in stock | View |
 | IAUZ40N10S5N130#C535733Infineon · TSDSON-8(3.3x3.3) | Infineon | TSDSON-8(3.3x3.3) | 239 | ₹153.73 · 239 in stock | View |
 | BSZ240N12NS3 G#C534717Infineon · TSDSON-8(3.3x3.3) | Infineon | TSDSON-8(3.3x3.3) | 50 | ₹588.66 · 50 in stock | View |
 | NTTFS020N06CTAG#C900338onsemi · WDFN-8-EP(3.3x3.3) | onsemi | WDFN-8-EP(3.3x3.3) | 3 | ₹165.26 · 3 in stock | View |
 | FH1304G6#C5159042XIN FEI HONG · PDFN-8L(3.3x3.3) | XIN FEI HONG | PDFN-8L(3.3x3.3) | 6,506 | ₹12.00 · 6,506 in stock | View |
