onsemiDatasheet (PDF)

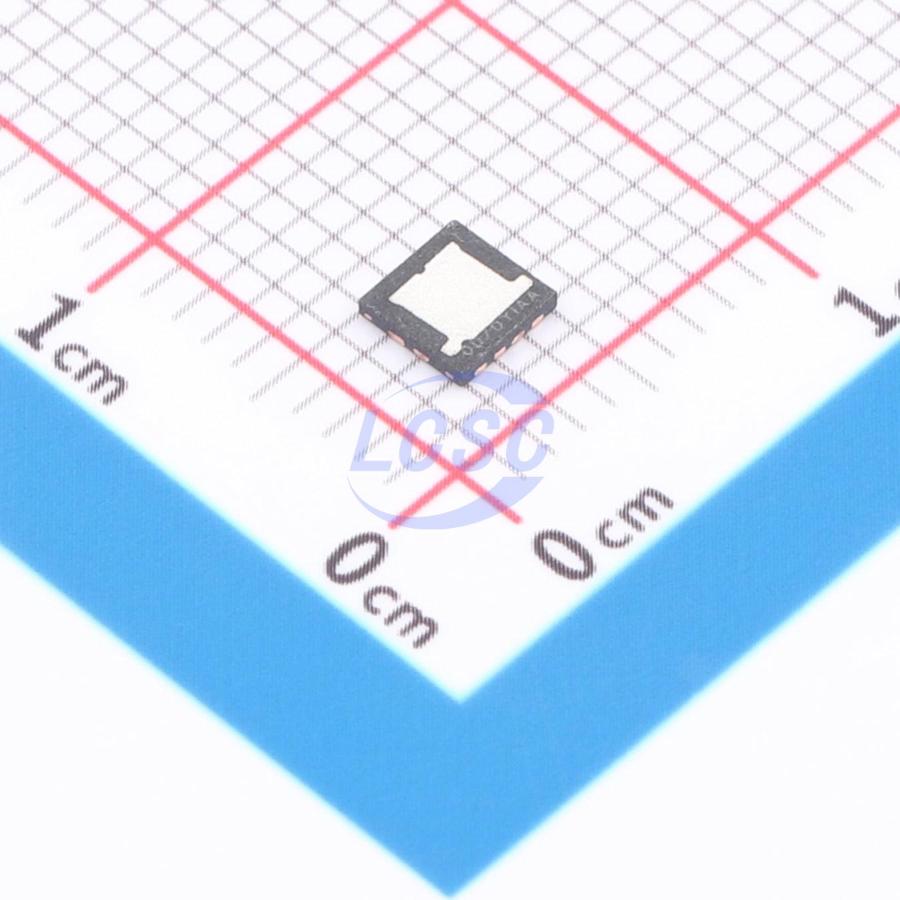

NTTFSSCH0D7N02X
25V 310A 87W 0.51mΩ@10V 1 N-channel N-Channel WDFN-9(3.3x3.3) Single FETs, MOSFETs RoHS
WDFN-9(3.3x3.3)ROHS3 CompliantActive
MOSFET N-CH 25V 310A WDFN-9(3.3x3.3)
- Manufacturer
- onsemi
- Manufacturer part #
- NTTFSSCH0D7N02X
- Store part #
- C48538038
- Package / case
- WDFN-9(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C48538038
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹464.64 | ₹464.64 |
| 10+ | ₹393.74 | ₹3,937.40 |
| 30+ | ₹351.68 | ₹10,550.40 |
| 100+ | ₹308.96 | ₹30,896.00 |
| 500+ | ₹289.46 | ₹1,44,730.00 |
| 1,000+ | ₹280.57 | ₹2,80,570.00 |
1 × ₹464.64
₹464.64
excl. GST
₹548.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTTFSSCH0D7N02X
₹464.64 for 1 + GST
Specifications
- Drain to Source Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 1.16nF
- Current - Continuous Drain(Id)
- 310A
- Ciss-Input Capacitance
- 3.98nF
- Pd - Power Dissipation
- 87W
- Reverse Transfer Capacitance (Crss)
- 124pF
- RDS(on)
- 0.51mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 55nC@10V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.328 g
Overview
Applications
- High switching frequency DC-DC conversion
- Synchronous rectification
Key features
- Advanced source-down center-gate dual heat dissipation package (3.3 x 3.3 mm) with excellent thermal performance
- Ultra-low on-resistance RDS(on) for improved system efficiency
- Low gate charge QG and capacitance to minimize driving and switching losses
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IQEH54NE2LM7UCGATMA1#C50344260Infineon · TFN-9 | Infineon | TFN-9 | 10 | ₹750.56 · 10 in stock | View |
| IQEH68NE2LM7UCGATMA1#C50397908Infineon · TTFN-9 | Infineon | TTFN-9 | 15 | ₹543.37 · 15 in stock | View | |
 | IQD005N04NM6CGATMA1#C20191636Infineon · TTFN-9 | Infineon | TTFN-9 | 95 | ₹726.67 · 95 in stock | View |
 | IQDH88N06LM5CGATMA1#C19674127Infineon · TTFN-9 | Infineon | TTFN-9 | 9 | ₹748.38 · 9 in stock | View |
 | IQEH50NE2LM7ZCGATMA1#C50344259Infineon · TFN-9 | Infineon | TFN-9 | On request | ₹671.69 · 0 in stock | View |
