onsemiDatasheet (PDF)

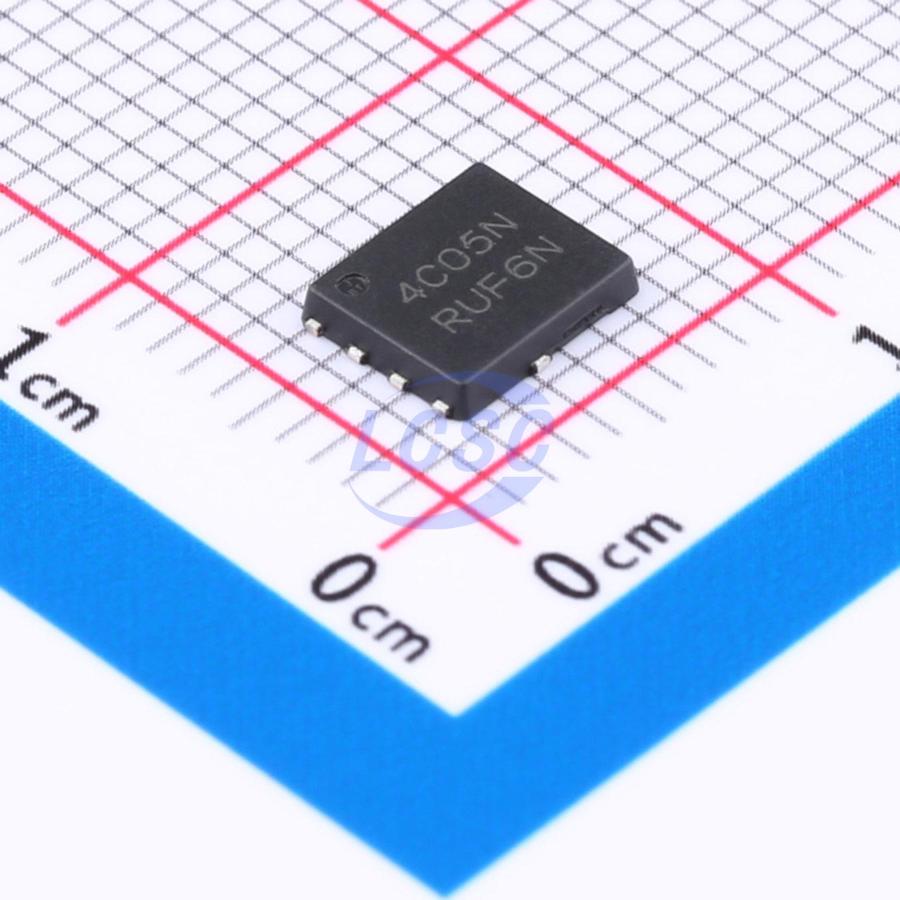

NVMFS4C05NT1G
N-Channel 30V 3.61W 79W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 30V SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS4C05NT1G
- Store part #
- C604580
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
93 in stock
#C604580
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹259.03 | ₹259.03 |
| 10+ | ₹221.43 | ₹2,214.30 |
| 30+ | ₹197.75 | ₹5,932.50 |
| 100+ | ₹173.63 | ₹17,363.00 |
| 500+ | ₹162.76 | ₹81,380.00 |
| 1,500+ | ₹157.98 | ₹2,36,970.00 |
1 × ₹259.03
₹259.03
excl. GST
₹305.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS4C05NT1G
₹259.03 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.215nF
- Ciss-Input Capacitance
- 1.972nF
- Pd - Power Dissipation
- 3.61W;79W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 127A
- Reverse Transfer Capacitance (Crss)
- 59pF
- RDS(on)
- 2.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Key features
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- Optimized Gate Charge to Minimize Switching Losses
- NVMFS4C05NWF − Wettable Flanks Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
