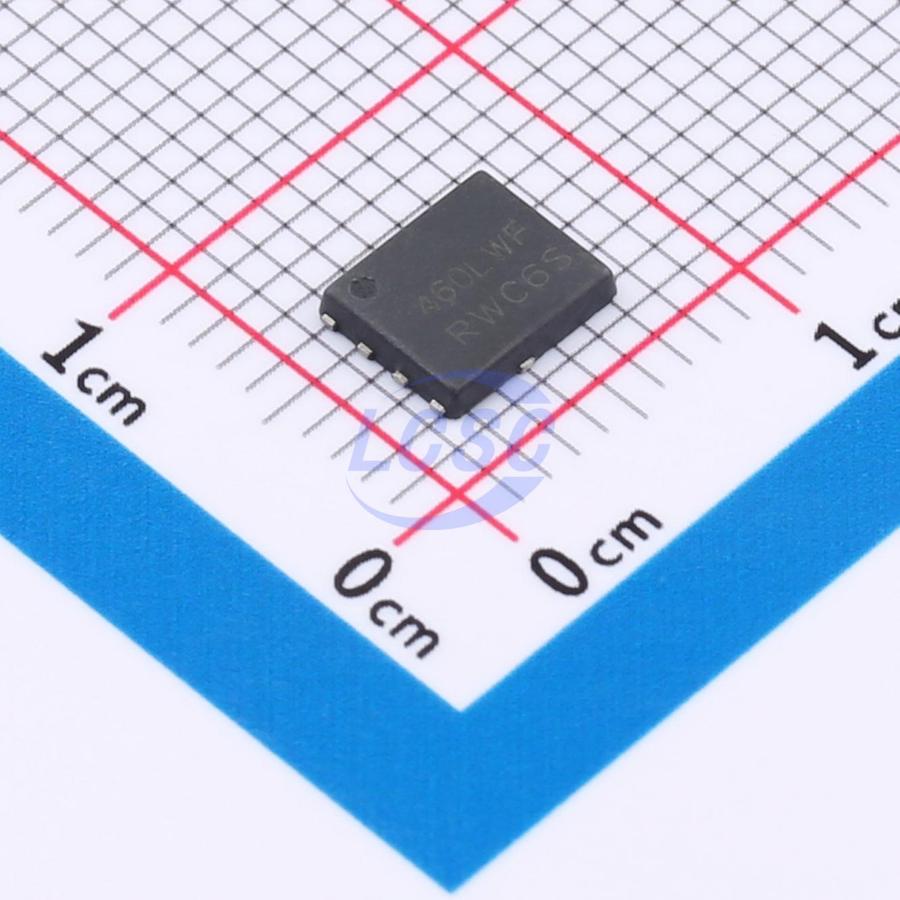

NVMFS5C460NLWFAFT1G
40V 78A 50W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET 40V 78A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C460NLWFAFT1G
- Store part #
- C556458
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C556458
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹240.55 | ₹240.55 |
| 10+ | ₹205.50 | ₹2,055.00 |
| 30+ | ₹183.74 | ₹5,512.20 |
| 100+ | ₹161.31 | ₹16,131.00 |
| 500+ | ₹151.09 | ₹75,545.00 |
| 1,500+ | ₹146.73 | ₹2,20,095.00 |
1 × ₹240.55
₹240.55
excl. GST
₹283.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C460NLWFAFT1G
₹240.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 530pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 78A
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 4.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 23nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS5C460NLWF - Wettable Flank Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C460NLAFT1G#C604601onsemi · SO-8FL | onsemi | SO-8FL | On request | ₹196.24 · 0 in stock | View |
 | APG032N04G#C5443668ALLPOWER · PDFN5x6-8 | ALLPOWER | PDFN5x6-8 | 5,035 | ₹77.17 · 5,035 in stock | View |
 | XRS80N04HF#C52195551XNRUSEMI · PDFN-8L(5x6) | XNRUSEMI | PDFN-8L(5x6) | 3,780 | ₹27.86 · 3,780 in stock | View |
 | NVMFS5C423NLAFT1G#C604593onsemi · SO-8FL | onsemi | SO-8FL | 44 | ₹351.01 · 44 in stock | View |
 | BSC054N04NSG#C501505Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 6,507 | ₹79.63 · 6,507 in stock | View |
