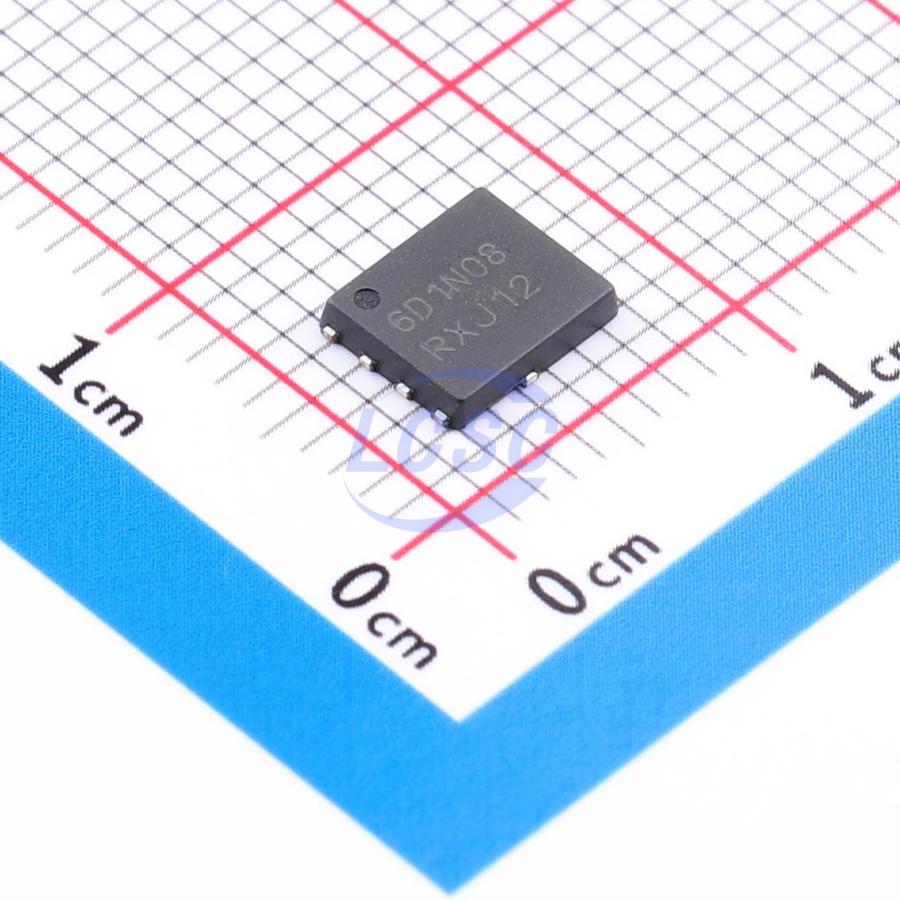

NVMFS6D1N08HT1G
104W 80V 89A 4.5mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
MOSFET N-CH 80V 89A DFN-5(5.9x4.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS6D1N08HT1G
- Store part #
- C900463
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C900463
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹433.11 | ₹433.11 |
| 10+ | ₹426.65 | ₹4,266.50 |
| 30+ | ₹422.35 | ₹12,670.50 |
| 100+ | ₹418.05 | ₹41,805.00 |
1 × ₹433.11
₹433.11
excl. GST
₹511.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS6D1N08HT1G
₹433.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 300pF
- Ciss-Input Capacitance
- 2.085nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 89A
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 4.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@6V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
Applications
- Synchronous rectification
- AC-DC and DC-DC power supplies
- AC-DC adapter (USB PD) synchronous rectification
- Load switch
Key features
- Compact 5×6 mm package for space-constrained designs
- Low on-resistance RDS(on) minimizes conduction losses
- Low gate charge QG and capacitance minimizes drive losses
- NVMFSW6D1N08H - solderable flank option for enhanced optical inspection
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, beryllium-free, and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM8580NHD56#C19829613TECH PUBLIC · PDFN-8L(5x6) | TECH PUBLIC | PDFN-8L(5x6) | 222 | ₹178.78 · 222 in stock | View |
 | NVMFS6H818NWFT1G#C900469onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 4 | ₹415.26 · 4 in stock | View |
 | NTMFS6H800NT1G#C604456onsemi · DFN5(5x6) | onsemi | DFN5(5x6) | 10 | ₹445.30 · 10 in stock | View |
 | NVMFWS3D0N08XT1G#C36981641onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 29 | ₹405.49 · 29 in stock | View |
 | NTMFS6H818NLT1G#C900317onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹362.95 · 20 in stock | View |
