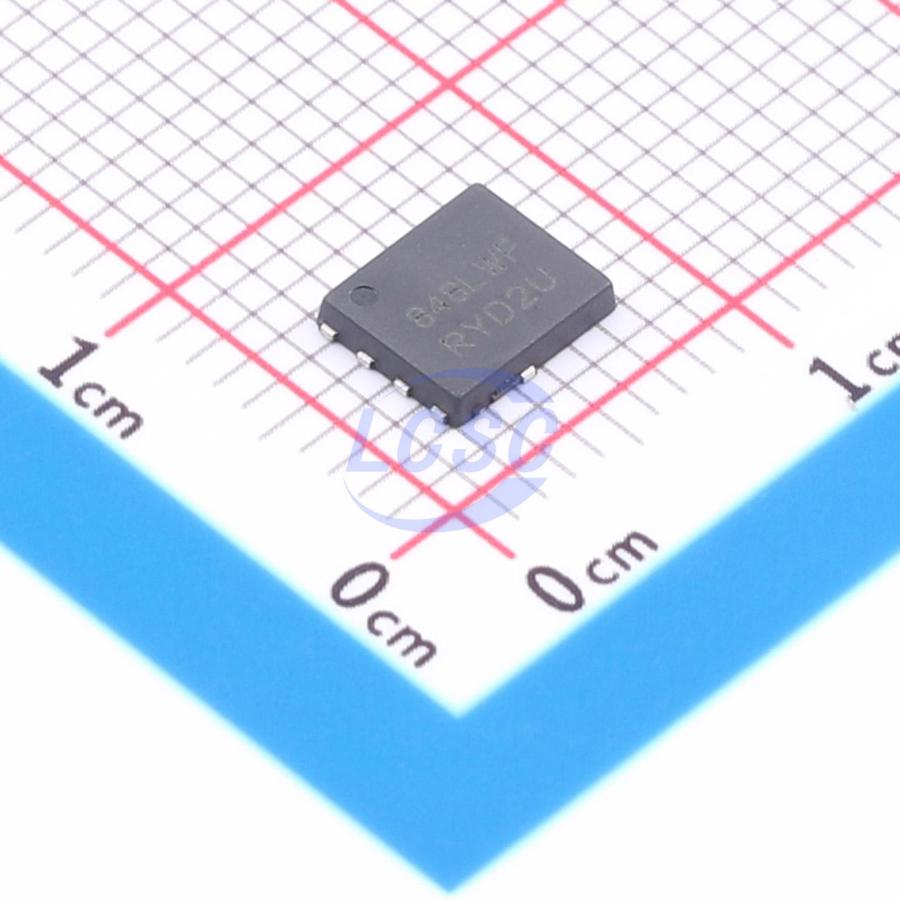

NVMFS6H848NLWFT1G
73W 80V 59A 7.2mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS6H848NLWFT1G
- Store part #
- C900479
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C900479
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.70 | ₹212.70 |
| 10+ | ₹209.02 | ₹2,090.20 |
| 30+ | ₹206.41 | ₹6,192.30 |
| 100+ | ₹204.03 | ₹20,403.00 |
1 × ₹212.70
₹212.70
excl. GST
₹250.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS6H848NLWFT1G
₹212.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 192pF
- Ciss-Input Capacitance
- 1.42nF
- Pd - Power Dissipation
- 73W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 59A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 7.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Applications
- Power tools, battery-powered vacuum cleaners
- Drones, material handling equipment
- Battery Management Systems (BMS)/energy storage, home automation
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low RDS(on) for minimized conduction losses
- Low QG and capacitance for minimized driving losses
- NVMFS6H848NLWF - solderable flank option for optical inspection
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS6H848NLT1G#C900319onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 50 | ₹306.12 · 50 in stock | View |
 | HSBA8048#C508833HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,288 | ₹79.54 · 2,288 in stock | View |
 | NTMFS6H836NLT1G#C900318onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 51 | ₹344.42 · 51 in stock | View |
| NVMFS6H836NLWFT1G#C900475onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 26 | ₹199.53 · 26 in stock | View | |
 | NVMFS6H848NT1G#C900480onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 81 | ₹215.42 · 81 in stock | View |
