onsemiDatasheet (PDF)

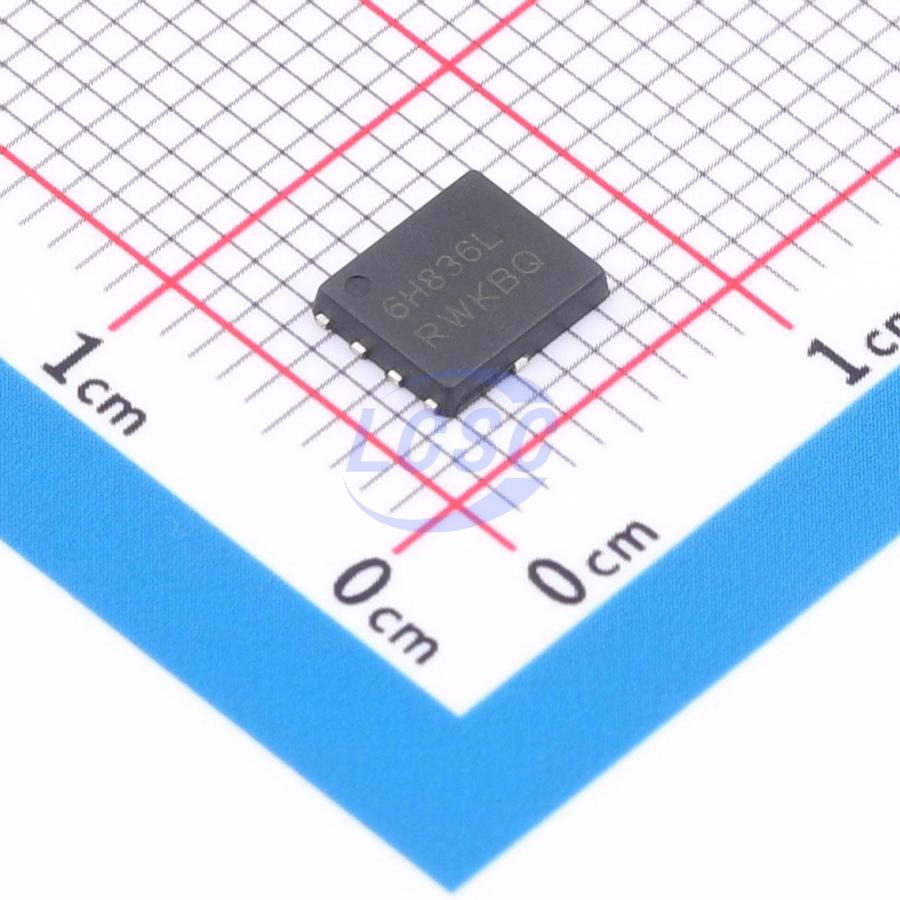

NTMFS6H836NLT1G
89W 80V 77A 5.1mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
MOSFET N-CH 80V 77A DFN-5(5.9x4.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS6H836NLT1G
- Store part #
- C900318
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C900318
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹344.42 | ₹344.42 |
| 10+ | ₹292.93 | ₹2,929.30 |
| 30+ | ₹260.76 | ₹7,822.80 |
| 100+ | ₹227.52 | ₹22,752.00 |
| 500+ | ₹212.74 | ₹1,06,370.00 |
| 1,500+ | ₹206.22 | ₹3,09,330.00 |
1 × ₹344.42
₹344.42
excl. GST
₹406.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS6H836NLT1G
₹344.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 250pF
- Ciss-Input Capacitance
- 1.95nF
- Pd - Power Dissipation
- 89W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 77A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 5.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low on-resistance RDS(on) minimizes conduction losses
- Low gate charge QG and capacitance minimize driving losses
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NVMFS6H836NLWFT1G#C900475onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 26 | ₹199.53 · 26 in stock | View | |
 | TPM8580NHD56#C19829613TECH PUBLIC · PDFN-8L(5x6) | TECH PUBLIC | PDFN-8L(5x6) | 222 | ₹178.78 · 222 in stock | View |
 | HSBA8070#C53244013HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 44 | ₹84.63 · 44 in stock | View |
 | NVMFS6H836NT1G#C900476onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 19 | ₹467.71 · 19 in stock | View |
 | NVMFS6D1N08HT1G#C900463onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 40 | ₹433.11 · 40 in stock | View |
