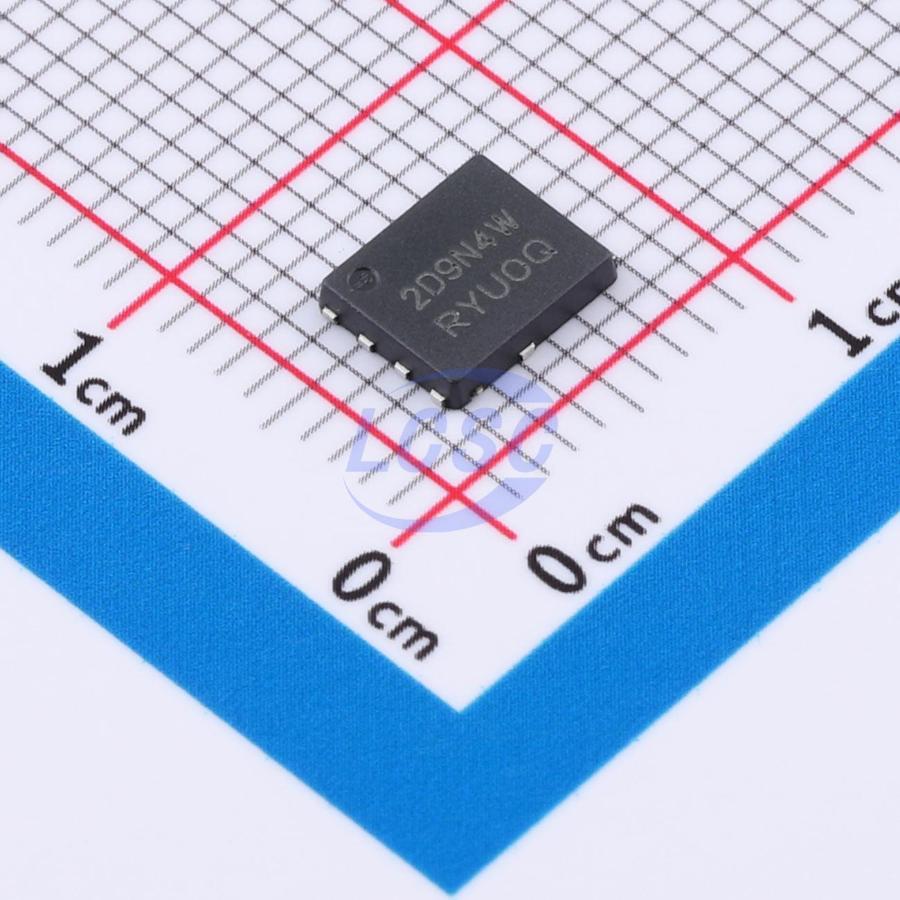

NVMFWS2D9N04XMT1G
40V 94A 50W 3.1mΩ@10V 1 N-channel N-Channel DFNW-5(5x6) Single FETs, MOSFETs RoHS
DFNW-5(5x6)ROHS3 CompliantActive
MOSFET N-CH 40V 94A DFNW-5(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFWS2D9N04XMT1G
- Store part #
- C39179053
- Package / case
- DFNW-5(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C39179053
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹380.67 | ₹380.67 |
| 10+ | ₹339.83 | ₹3,398.30 |
| 30+ | ₹314.25 | ₹9,427.50 |
| 100+ | ₹288.02 | ₹28,802.00 |
| 500+ | ₹276.20 | ₹1,38,100.00 |
| 1,000+ | ₹271.04 | ₹2,71,040.00 |
1 × ₹380.67
₹380.67
excl. GST
₹449.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMFWS2D9N04XMT1G
₹380.67 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 94A
- Output Capacitance(Coss)
- 645pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 12.3pF
- RDS(on)
- 3.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Motor drive - Battery protection - Synchronous rectification
Key features
- Low on-resistance (RDS(on)) for reduced conduction losses
- Low capacitance for reduced driving losses
- Compact 5 x 6 mm footprint for space-constrained designs
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFWS3D0N08XT1G#C36981641onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 29 | ₹405.49 · 29 in stock | View |
| NVMFS5C450NWFAFT1G#C900433onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 25 | ₹656.21 · 25 in stock | View | |
 | NTMFS5C628NT1G#C900310onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 21 | ₹358.52 · 21 in stock | View |
 | NVMFS5C426NAFT1G#C129783onsemi · DFN-5(5.1x6.1) | onsemi | DFN-5(5.1x6.1) | On request | ₹330.62 · 0 in stock | View |
 | NVMFS5C645NLAFT1G#C604613onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 23 | ₹347.13 · 23 in stock | View |
