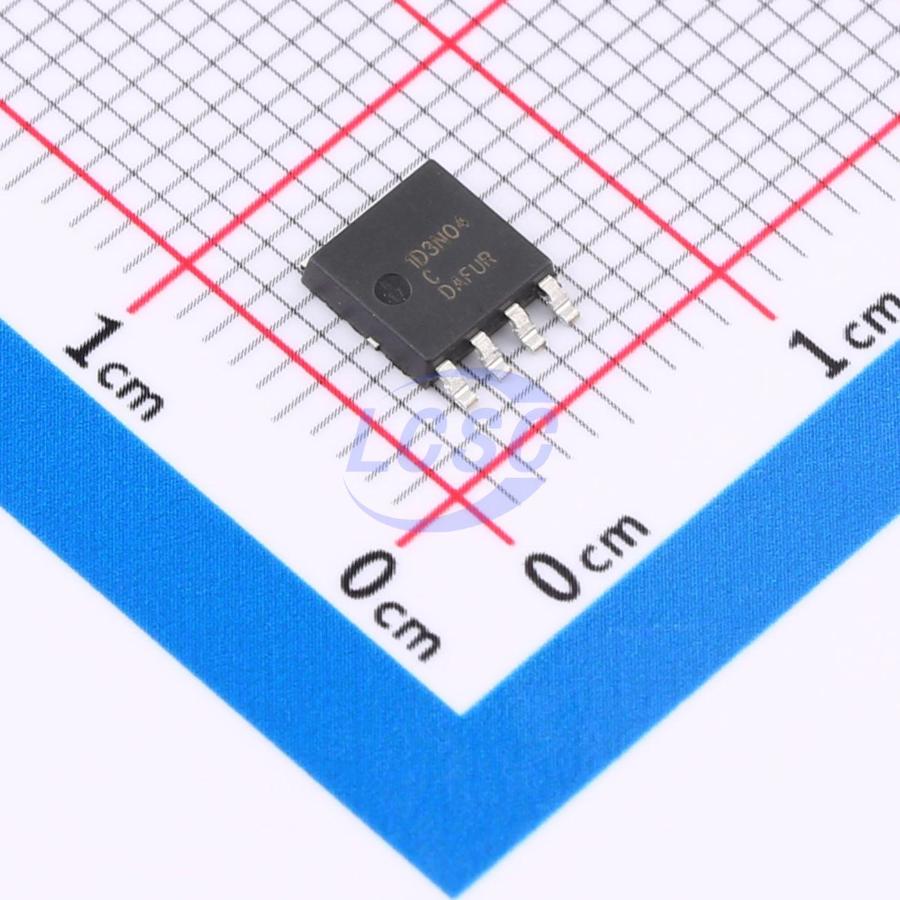

NVMJS1D3N04CTWG
N-Channel 40V 41A 235A 3.8W 128W Surface Mount LFPAK-8
LFPAK-8ROHS3 CompliantActive
MOSFET N-CH 40V 41A 235A LFPAK-8
- Manufacturer
- onsemi
- Manufacturer part #
- NVMJS1D3N04CTWG
- Store part #
- C894175
- Package / case
- LFPAK-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C894175
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹236.21 | ₹236.21 |
| 10+ | ₹230.56 | ₹2,305.60 |
| 30+ | ₹226.87 | ₹6,806.10 |
| 100+ | ₹222.95 | ₹22,295.00 |
1 × ₹236.21
₹236.21
excl. GST
₹278.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMJS1D3N04CTWG
₹236.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.1nF
- Ciss-Input Capacitance
- 4.3nF
- Pd - Power Dissipation
- 3.8W;128W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 41A;235A
- Reverse Transfer Capacitance (Crss)
- 59pF
- RDS(on)
- 1.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- LFPAK8 Package, Industry Standard
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
