onsemiDatasheet (PDF)

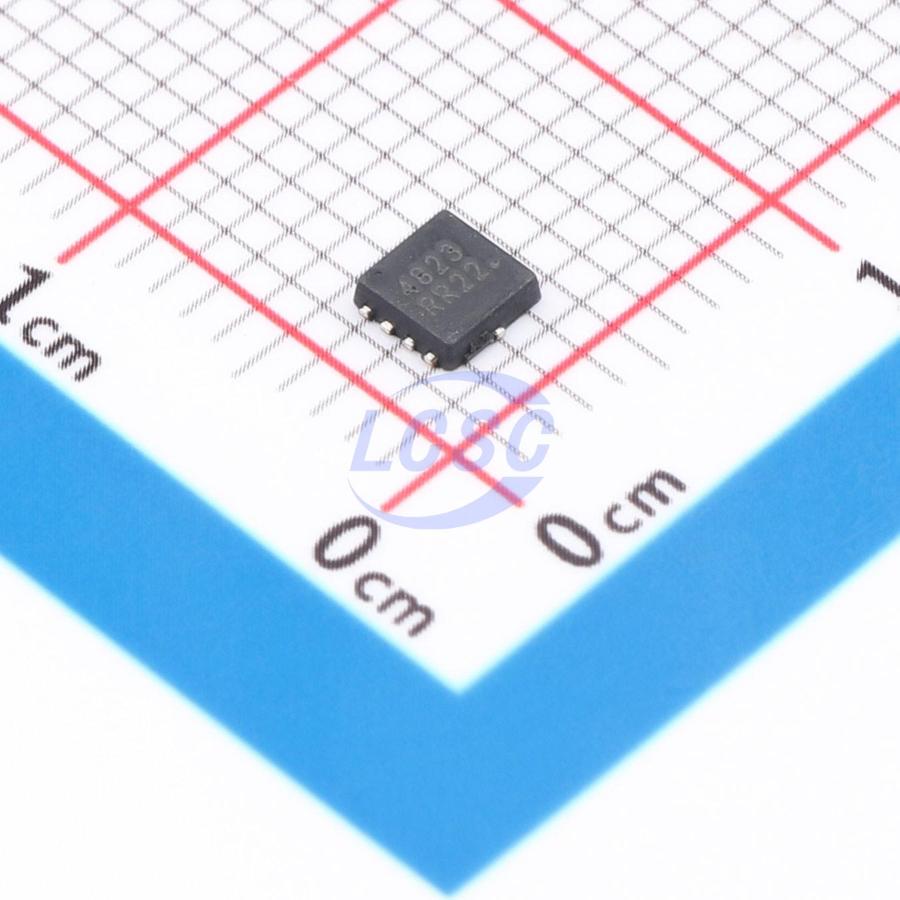

NVTFS4823NTWG
30V 30A 21W 8.1mΩ@10V 1 N-channel N-Channel WDFN-8 Single FETs, MOSFETs RoHS
WDFN-8ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS4823NTWG
- Store part #
- C896028
- Package / case
- WDFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
607 in stock
#C896028
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.97 | ₹133.97 |
| 10+ | ₹107.39 | ₹1,073.90 |
| 30+ | ₹94.00 | ₹2,820.00 |
| 100+ | ₹80.81 | ₹8,081.00 |
| 500+ | ₹73.04 | ₹36,520.00 |
| 1,000+ | ₹68.93 | ₹68,930.00 |
1 × ₹133.97
₹133.97
excl. GST
₹158.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVTFS4823NTWG
₹133.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 30A
- Output Capacitance(Coss)
- 175pF
- Ciss-Input Capacitance
- 750pF
- Pd - Power Dissipation
- 21W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 8.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.062 g
Overview
Key features
- Compact package (3.3x3.3 mm) for space-constrained designs
- Low on-resistance RDS(on) for reduced conduction losses
- Low capacitance for reduced driving losses
- NVTFS4823NWF - solderable flank variant
- AEC-Q101 qualified with PPAP capability
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STL58N3LLH5#C2965301ST · VDFN-8-Power | ST | VDFN-8-Power | 5 | ₹366.05 · 5 in stock | View | |
 | STL70N4LLF5#C2970222ST · VDFN-8-Power | ST | VDFN-8-Power | 4 | ₹389.04 · 4 in stock | View |
 | IAUZN04S7N049ATMA1#C42667631Infineon · PG-TSDSON-8-44 | Infineon | PG-TSDSON-8-44 | 161 | ₹96.01 · 161 in stock | View |
 | IPZ40N04S58R4ATMA1#C3279297Infineon · TSDSON-8 | Infineon | TSDSON-8 | 128 | ₹92.15 · 128 in stock | View |
 | IAUCN04S7N040HATMA1#C48017661Infineon · SON-8 | Infineon | SON-8 | 27 | ₹273.64 · 27 in stock | View |
