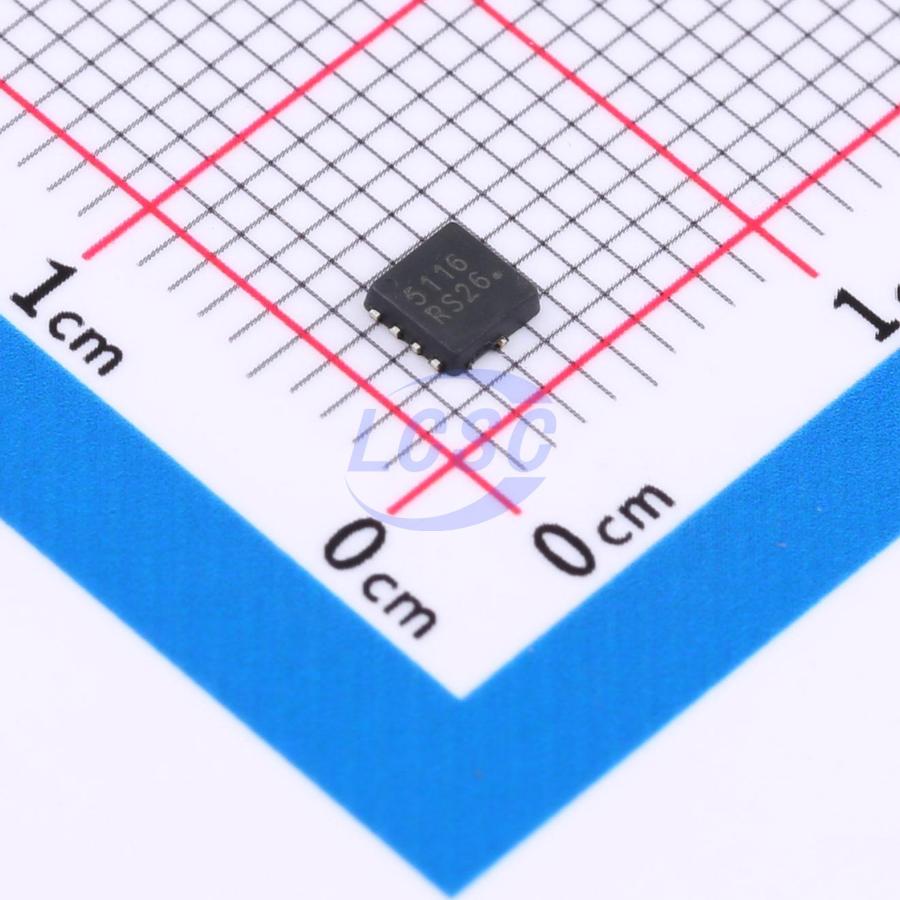

NVTFS5116PLTAG
P-Channel 60V 14A 21W Surface Mount WDFN-8(3.3x3.3)
WDFN-8(3.3x3.3)ROHS3 CompliantActive
MOSFET P-CH 60V 14A WDFN-8(3.3x3.3)
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS5116PLTAG
- Store part #
- C389530
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C389530
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.77 | ₹110.77 |
| 10+ | ₹88.61 | ₹886.10 |
| 30+ | ₹77.54 | ₹2,326.20 |
| 100+ | ₹66.47 | ₹6,647.00 |
| 500+ | ₹59.95 | ₹29,975.00 |
| 1,500+ | ₹56.48 | ₹84,720.00 |
1 × ₹110.77
₹110.77
excl. GST
₹130.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVTFS5116PLTAG
₹110.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 127pF
- Ciss-Input Capacitance
- 1.258nF
- Pd - Power Dissipation
- 21W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 14A
- Reverse Transfer Capacitance (Crss)
- 84pF
- RDS(on)
- 72mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
Key features
- Small Footprint (3.3 x 3.3 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- NVTFS5116PLWF - Wettable Flanks Product
- AEC - Q101 Qualified and PPAP Capable
- These Devices are Pb - Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVTFS5116PL(XBLW)#C22451448XBLW · DFN3X3-8L | XBLW | DFN3X3-8L | 2,490 | ₹33.68 · 2,490 in stock | View |
 | HSBB6115#C845604HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 47,763 | ₹59.36 · 47,763 in stock | View |
 | SQ7415AEN-T1_GE3#C506610VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2 | ₹83.19 · 2 in stock | View |
 | SQ7415AENW-T1_GE3#C727691VISHAY · PowerPAK-1212-8W | VISHAY | PowerPAK-1212-8W | 490 | ₹133.03 · 490 in stock | View |
 | SQ7415CENW-T1_GE3#C3289441VISHAY · PowerPAK1212-8W | VISHAY | PowerPAK1212-8W | 5,097 | ₹72.55 · 5,097 in stock | View |
