onsemiDatasheet (PDF)

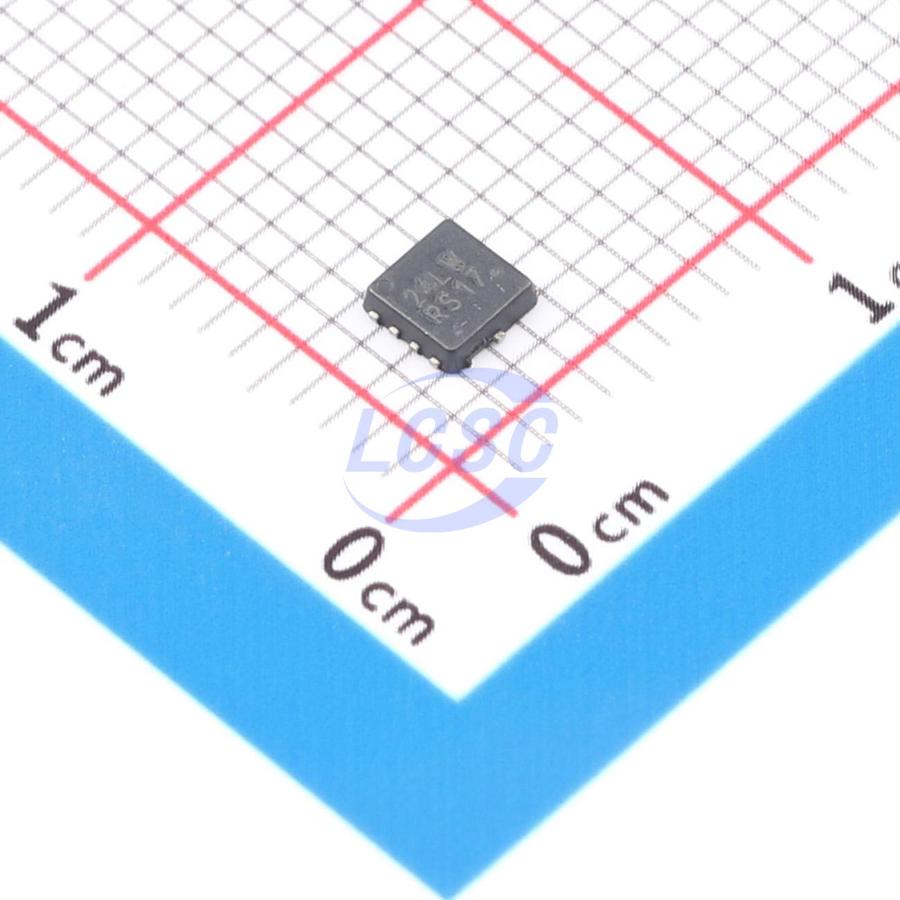

NVTFS5124PLWFTAG
60V 6A 200mΩ@10V 1 P-Channel P-Channel WDFN-8(3.3x3.3) Single FETs, MOSFETs RoHS
WDFN-8(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS5124PLWFTAG
- Store part #
- C900520
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C900520
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.75 | ₹106.75 |
| 10+ | ₹104.15 | ₹1,041.50 |
| 30+ | ₹102.19 | ₹3,065.70 |
| 100+ | ₹100.46 | ₹10,046.00 |
1 × ₹106.75
₹106.75
excl. GST
₹125.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVTFS5124PLWFTAG
₹106.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 27pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 3W;18W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.107 g
Overview
Key features
- Compact package (3.3 x 3.3 mm) for space-constrained designs
- Low on-resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized driving losses
- NVTFS5124PLWF - solderable flank variant
- AEC-Q101 qualified with PPAP capability
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB6113#C2903563HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 17,240 | ₹39.07 · 17,240 in stock | View |
 | HNTTFS5116PLTWG#C42401369HXY MOSFET · WDFN-8(3.3x3.3) | HXY MOSFET | WDFN-8(3.3x3.3) | 45 | ₹51.66 · 45 in stock | View |
 | SQ7415AEN-T1_GE3#C506610VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2 | ₹83.19 · 2 in stock | View |
 | SQ7415AENW-T1_GE3#C727691VISHAY · PowerPAK-1212-8W | VISHAY | PowerPAK-1212-8W | 490 | ₹133.03 · 490 in stock | View |
 | YJQ15GP10A#C2942436YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 4,130 | ₹45.56 · 4,130 in stock | View |
