MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
onsemiDatasheet (PDF)

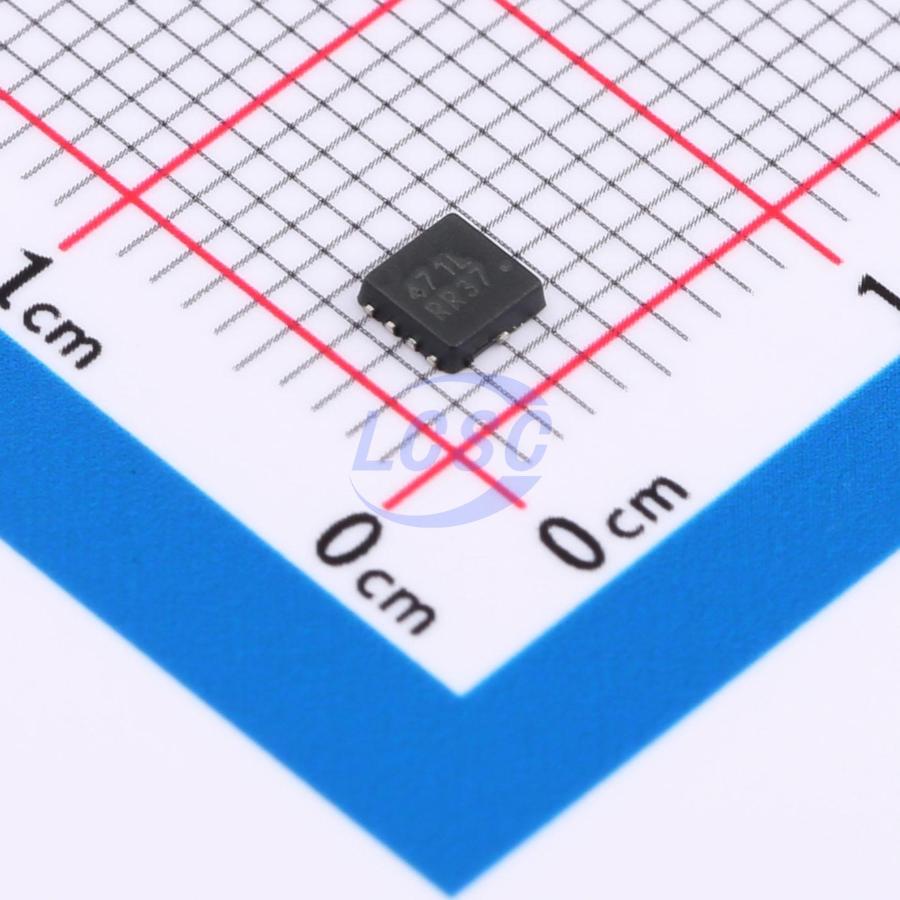

NVTFS5C471NLTAG
N-Channel 40V 41A 30W Surface Mount WDFN-8(3.3x3.3)
WDFN-8(3.3x3.3)ROHS3 CompliantActive
MOSFET N-CH 40V 41A WDFN-8(3.3x3.3)
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS5C471NLTAG
- Store part #
- C900526
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C900526
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.38 | ₹140.38 |
| 10+ | ₹116.69 | ₹1,166.90 |
| 30+ | ₹103.66 | ₹3,109.80 |
| 100+ | ₹88.88 | ₹8,888.00 |
| 500+ | ₹82.36 | ₹41,180.00 |
| 1,500+ | ₹79.31 | ₹1,18,965.00 |
1 × ₹140.38
₹140.38
excl. GST
₹165.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVTFS5C471NLTAG
₹140.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 41A
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
Key features
- Small Footprint (3.3 x 3.3 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- NVTFS5C471NLWF − Wettable Flanks Product
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVTFS5C471NLWFTAG#C604643onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 12 | ₹144.95 · 12 in stock | View |
 | SP40N08NJ#C28312273Siliup · PDFNWB-8L(3.3x3.3) | Siliup | PDFNWB-8L(3.3x3.3) | 250 | ₹15.06 · 250 in stock | View |
 | SP40N06NJ#C41355043Siliup · PDFNWB-8L(3.3x3.3) | Siliup | PDFNWB-8L(3.3x3.3) | 5,040 | ₹22.50 · 5,040 in stock | View |
 | HSBB4052#C508823HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 9,655 | ₹29.29 · 9,655 in stock | View |
 | TDM3482#C232919Techcode · PDFN3333-8 | Techcode | PDFN3333-8 | 5,415 | ₹41.36 · 5,415 in stock | View |
