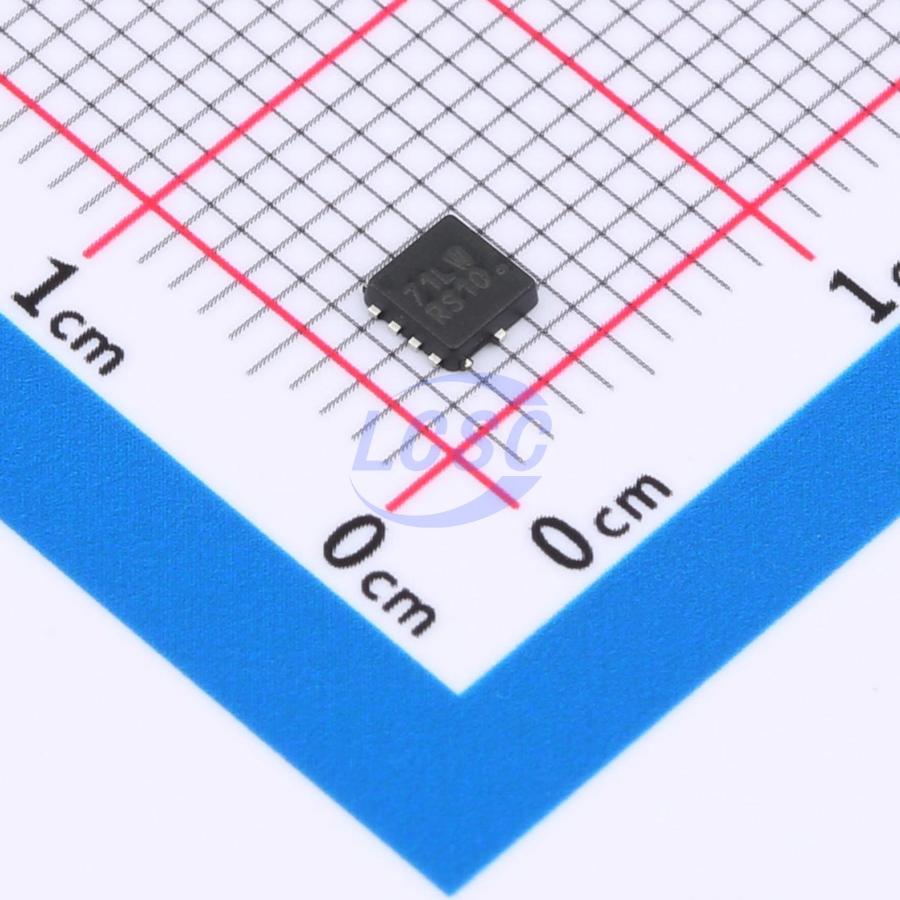

NVTFS5C471NLWFTAG
N-Channel 40V 41A 30W Surface Mount WDFN-8(3.3x3.3)
WDFN-8(3.3x3.3)ROHS3 CompliantActive
MOSFET N-CH 40V 41A WDFN-8(3.3x3.3)
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS5C471NLWFTAG
- Store part #
- C604643
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C604643
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.95 | ₹144.95 |
| 10+ | ₹141.80 | ₹1,418.00 |
| 30+ | ₹139.92 | ₹4,197.60 |
| 100+ | ₹137.82 | ₹13,782.00 |
1 × ₹144.95
₹144.95
excl. GST
₹171.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVTFS5C471NLWFTAG
₹144.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 41A
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Key features
- Small Footprint (3.3 x 3.3 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- NVTFS5C471NLWF − Wettable Flanks Product
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVTFS5C471NLTAG#C900526onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 14 | ₹140.38 · 14 in stock | View |
 | TDM3482#C232919Techcode · PDFN3333-8 | Techcode | PDFN3333-8 | 5,415 | ₹41.36 · 5,415 in stock | View |
 | NCEP6050AQU#C2686775NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 5,168 | ₹86.78 · 5,168 in stock | View |
 | DMTH47M2LFVWQ-13#C19950043DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 80 | ₹189.92 · 80 in stock | View |
 | YJQ62G06A#C2908529YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 13,700 | ₹59.46 · 13,700 in stock | View |
