TECH PUBLICDatasheet (PDF)

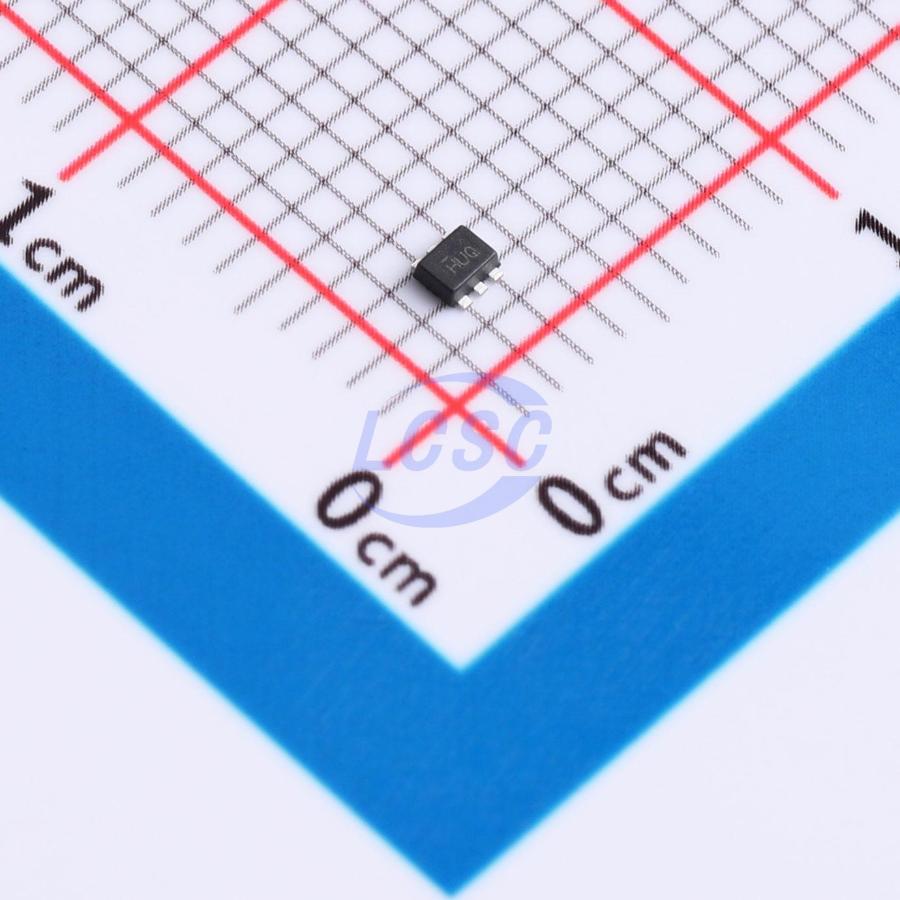

NX1029X
300mW 60V 1.5Ω@10V 1 N-Channel + 1 P-Channel N-Channel + P-Channel SOT-563 Single FETs, MOSFETs
SOT-563RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NX1029X
- Store part #
- C52817156
- Package / case
- SOT-563
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C52817156
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.43 | ₹72.15 |
| 50+ | ₹11.35 | ₹567.50 |
| 150+ | ₹9.80 | ₹1,470.00 |
| 500+ | ₹8.65 | ₹4,325.00 |
| 3,000+ | ₹7.73 | ₹23,190.00 |
| 6,000+ | ₹7.26 | ₹43,560.00 |
5 × ₹14.43
₹72.15
excl. GST
₹85.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NX1029X
₹72.15 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 11pF
- Ciss-Input Capacitance
- 36pF
- Pd - Power Dissipation
- 300mW
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 360mA;200mA
- Reverse Transfer Capacitance (Crss)
- 6.6pF
- RDS(on)
- 1.5Ω@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 950pC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Applications
- Replacement for digital transistors, level shifters - Power conversion circuits - Battery-powered systems
