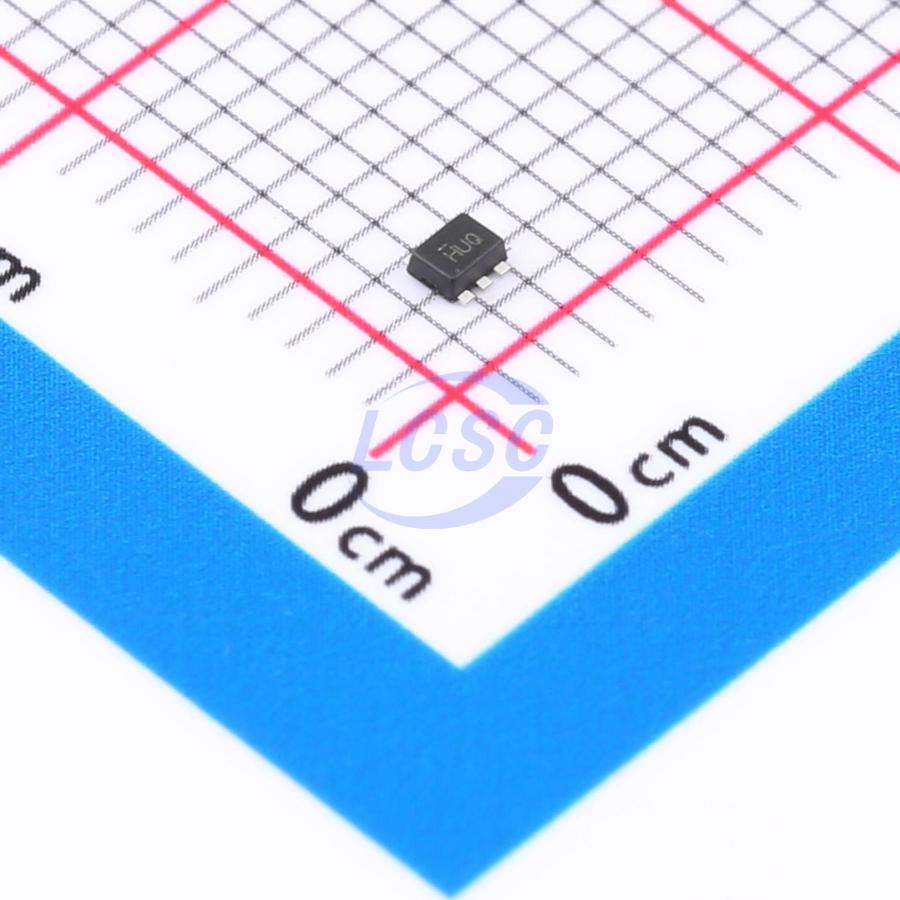

SI1029X
N-Channel+P-Channel Array 60V 360mA 200mA 300mW Surface Mount SOT-563
SOT-563RoHSActive
MOSFET N-CH+P-CH ARR 60V 360mA 200mA SOT-563
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SI1029X
- Store part #
- C7472877
- Package / case
- SOT-563
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C7472877
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.06 | ₹70.30 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.64 | ₹1,446.00 |
| 500+ | ₹8.53 | ₹4,265.00 |
| 3,000+ | ₹7.65 | ₹22,950.00 |
| 6,000+ | ₹7.21 | ₹43,260.00 |
5 × ₹14.06
₹70.30
excl. GST
₹82.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1029X
₹70.30 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 11pF;15pF
- Current - Continuous Drain(Id)
- 360mA;200mA
- Ciss-Input Capacitance
- 36pF;51pF
- Pd - Power Dissipation
- 300mW
- Reverse Transfer Capacitance (Crss)
- 6.6pF;2.2pF
- RDS(on)
- 1.5Ω@10V;2.5Ω@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 950pC@4.5V;1.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- Replace Digital Transistor
- Level-Shifter
- Power Supply Converter Circuits
- Battery Operated Systems
Key features
- ESD Protected 2KV HBM
- Package and Pin Configuration
