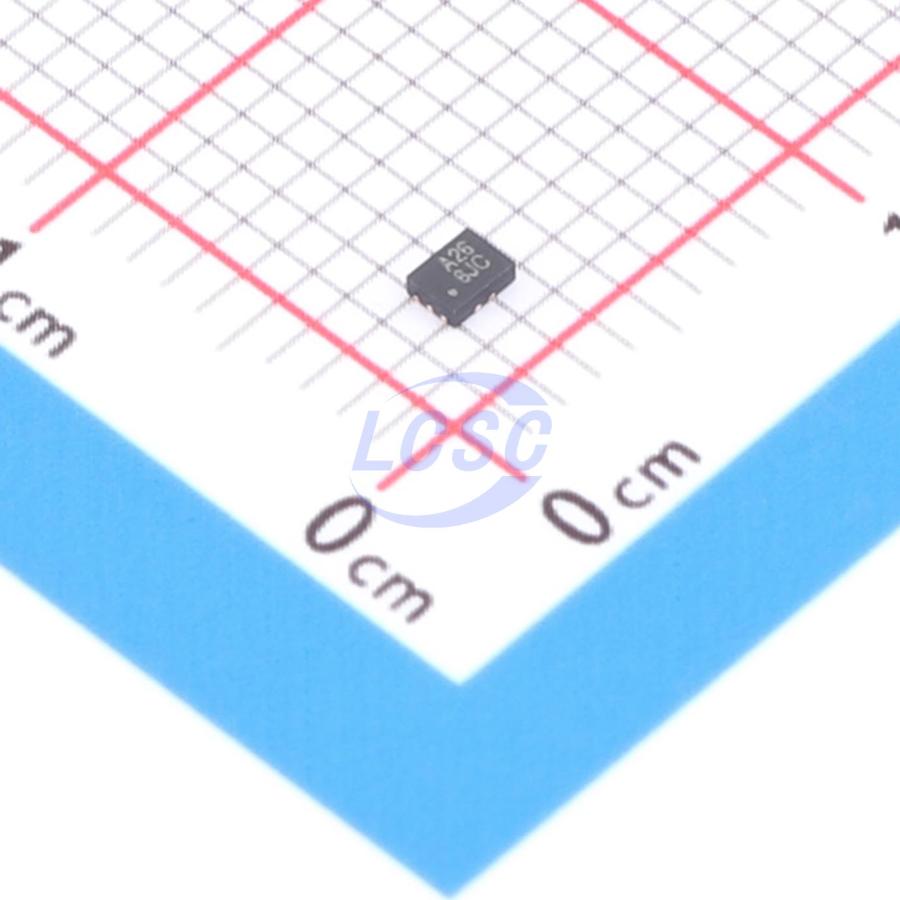

NX3DV42GU-TP

The is a bidirectional low-power dual port, high-speed, USB 2.0 analog switch with integrated protection for USB Type-C systems. The device is configured as a dual 2:1 or 1:2 switch. It is optimized for use with the USB 2.0 DP/DM lines in a USB Type-C system. The device is capable of true isolation. Even when COM+/- overrides VCC, very little current will flow back to the supply. has low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480Mbps). Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480 Mb/s) with good signal integrity.

Applications

• Mobile Phones, Tablets and Notebooks
• Anywhere a USB Type-C or Micro-B Connector is Used

Key features

• Low On-resistance, R0n = 1.5Ω when VCC = 5V
• 1.8V Logic Compatible Control Pin
• High Off-isolation: -100dB @ 100KHz
• COM+/- Overrides VCC to Achieve True Isolation Even When Supply Is Dead
• Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
• High Bandwidth (-3dB @550MHz)
• Suitable For USB2.0 High-Speed Routing
• Low Quiescent Current (< 2uA)
• With Very Wide Supply Range (1.5V ~ 5.5V)
