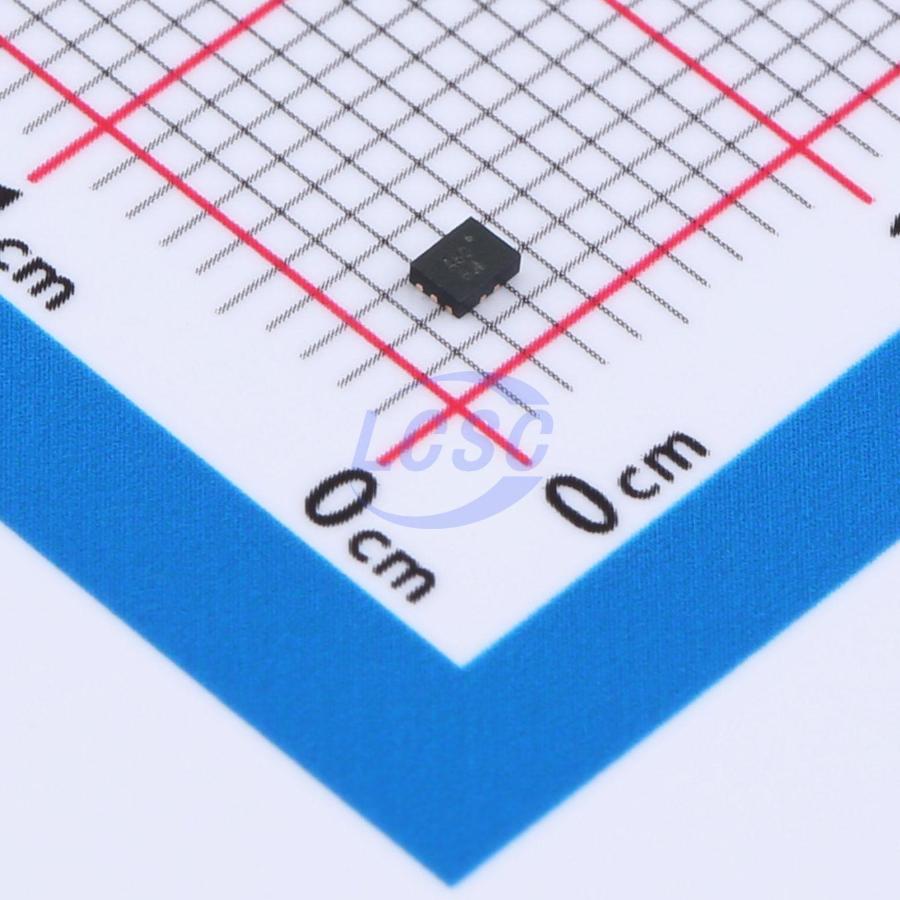

TPTS3A5223RSWR
2 1.5Ω 1.5V~5.5V QFN-10L(1.4x1.8) Analog Switches, Multiplexers, Demultiplexers
QFN-10L(1.4x1.8)RoHSActive
Dual channel SPDT bidirectional analog switch
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTS3A5223RSWR
- Store part #
- C42437010
- Package / case
- QFN-10L(1.4x1.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,375 in stock
#C42437010
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.52 | ₹177.60 |
| 50+ | ₹28.30 | ₹1,415.00 |
| 150+ | ₹25.22 | ₹3,783.00 |
| 500+ | ₹21.35 | ₹10,675.00 |
| 3,000+ | ₹19.65 | ₹58,950.00 |
| 6,000+ | ₹18.61 | ₹1,11,660.00 |
5 × ₹35.52
₹177.60
excl. GST
₹209.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTS3A5223RSWR
₹177.60 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 2
- Ron
- 1.5Ω
- Voltage - Supply
- 1.5V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
This is a high-speed dual channel analog switch, which has First disconnect, then connect, and bidirectional signal switching function. It can be used Create a dual 2:1 multiplexer or a 1:2 dual de multiplexer. It provides extremely low on resistance, very low THD, and channels Interstitial interference and high shutdown isolation. These characteristics make It is suitable for audio signal transmission and switching applications. The control logic supports 1.5V - 5.5V CMOS logic levels. This logic interface can directly interface with various CPU and microcontrollers without increasing the power output current (ICC), thereby reducing Power consumption.
Applications
- Mobile Phones, Tablets and Notebooks
- Portable media players or Personal media players
Key features
- Low On-resistance, R0n = 1.5Ω when VCC = 5V
- 1.8V Logic Compatible Control Pin
- High Off-isolation: -100dB @ 100KHz
- COM+/- Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
- High Bandwidth (-3dB @700MHz)
- Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (<2uA)
- With Very Wide Supply Range (1.5V~5.5V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPNX5L2750CGU#C42437009TECH PUBLIC · QFN-10(1.4x1.8) | TECH PUBLIC | QFN-10(1.4x1.8) | 2,595 | ₹33.15 · 2,595 in stock | View |
 | FSUSB42UMX-TP#C42370490TECH PUBLIC · QFN-10L(1.4x1.8) | TECH PUBLIC | QFN-10L(1.4x1.8) | 1,130 | ₹31.42 · 1,130 in stock | View |
 | NX3DV42GU-TP#C42379164TECH PUBLIC · QFN-10(1.4x1.8) | TECH PUBLIC | QFN-10(1.4x1.8) | 2,080 | ₹38.31 · 2,080 in stock | View |
 | TPSGM7227YUWQ10G#C42379165TECH PUBLIC · QFN-10L(1.4x1.8) | TECH PUBLIC | QFN-10L(1.4x1.8) | 1,430 | ₹28.76 · 1,430 in stock | View |
 | WAS7227Q-TP#C42379166TECH PUBLIC · QFN-10L(1.4x1.8) | TECH PUBLIC | QFN-10L(1.4x1.8) | 2,080 | ₹28.52 · 2,080 in stock | View |
