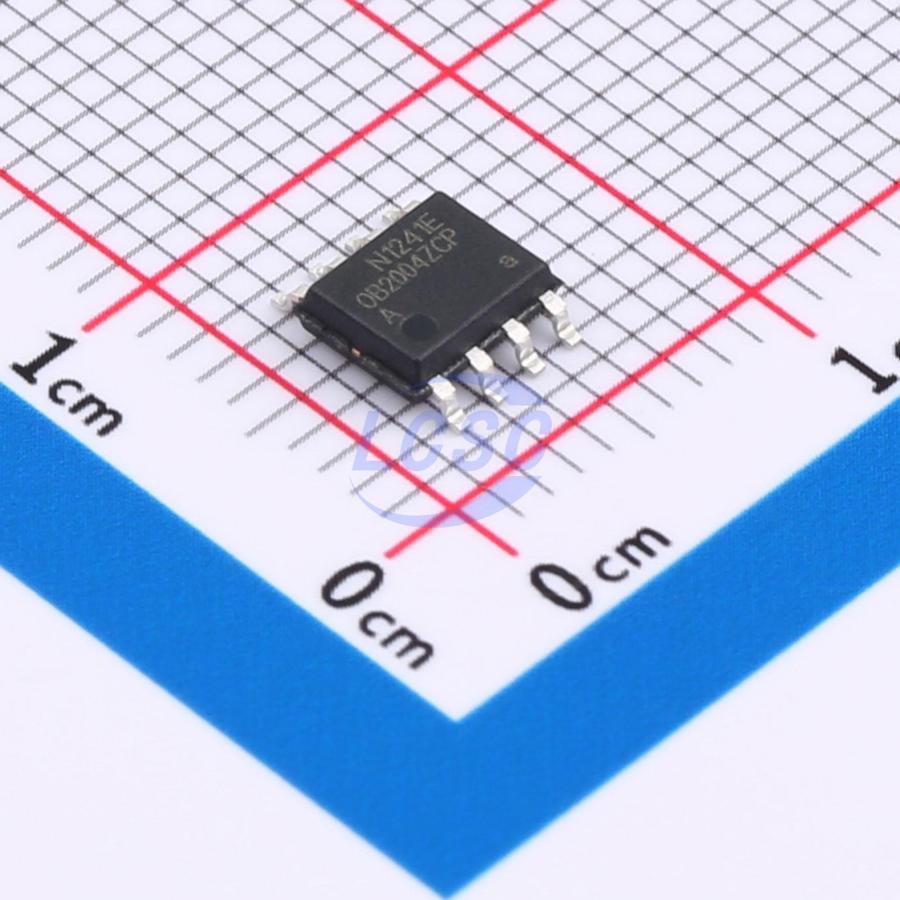

OB2004AZCPA-C

1 8mΩ SOP-8 Power Supply Controllers, Monitors

SOP-8RoHSActive

High Performance Synchronous Rectifier

Manufacturer: OB
Manufacturer part #: OB2004AZCPA-C
Store part #: C909939
Package / case: SOP-8
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C909939

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹39.00	₹195.00
50+	₹30.35	₹1,517.50
150+	₹26.65	₹3,997.50
500+	₹22.01	₹11,005.00
2,500+	₹19.95	₹49,875.00
4,000+	₹18.72	₹74,880.00

Quantity (min 5, multiples of 5)

5 × ₹39.00

₹195.00

excl. GST

₹230.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

OB2004AZCPA-C

₹195.00 for 5 + GST

Specifications

MOS Breakdown Voltage: 60V
Function: Multi-mode compatible control;Programmable dead-time
Switch Tube (Built-In/External): Built-in
Quiescent Current: 600uA
Number of Channels: 1
RDS(on): 8mΩ
Operating Temperature: -20℃~+85℃
Operating Voltage: 4.2V~5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.19 g

Overview

OB2004Ax is a high performance and tightly integrated secondary side synchronous rectifier for switch mode power supply system. It combines a much lower voltage drop N-channel MOSFET to emulate the traditional diode rectifier at the secondary side of Flyback converter, which can reduce heat dissipation, increases output current capability and efficiency and simplify thermal design. It can support wide range of system output voltage 3V~12V.

Applications

AC/DC 3V~12V chargers/adaptors
Low voltage rectification circuits

Key features

Secondary-side synchronous rectifier for 3V~12V output system
Suitable for DCM, QR and CCM operation
Prediction algorithm for CCM
Internal Power MOSFET
Accurate secondary side MOSFET Vds sensing
SR turn on/off dead-time control for high efficiency and low thermal with immunity of interference
Adaptive off time control effectively avoid the ring impact induced by parasitic elements
VDD UVLO protection
