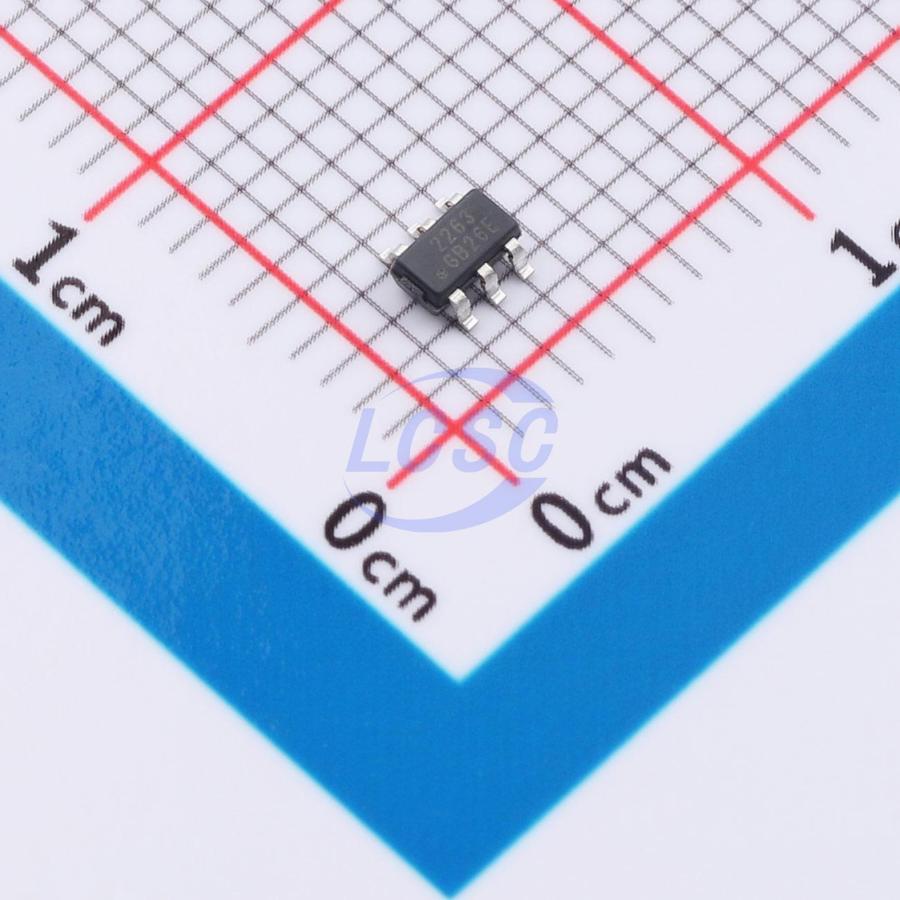

OB2263MDR

50kHz~150kHz 10V~26V Flyback SOT-23-6 AC DC Converters, Offline Switchers

SOT-23-6RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: OB2263MDR
Store part #: C52204669
Package / case: SOT-23-6
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,610 in stock

#C52204669

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹12.66	₹63.30
50+	₹10.05	₹502.50
150+	₹8.76	₹1,314.00
500+	₹7.78	₹3,890.00
3,000+	₹7.00	₹21,000.00
6,000+	₹6.62	₹39,720.00

Quantity (min 5, multiples of 5)

5 × ₹12.66

₹63.30

excl. GST

₹74.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OB2263MDR

₹63.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃
Frequency - Switching: 50kHz~150kHz
Voltage - Supply: 10V~26V
Features: Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Topology: Flyback
Duty Cycle(Max): 80%
Feedback System: Secondary-Side Feedback
Working Mode: PWM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.139 g

Overview

2263 is a highly integrated current-mode PWM control IC optimized for high-performance, low standby power, and cost-effective offline flyback converters, supporting output power systems up to 60W. The PWM switching frequency is internally fixed at 65KHz. Under no-load or light-load conditions, the IC operates in "Burst Mode" to minimize switching losses, achieving lower standby power consumption and higher conversion efficiency. Due to the extremely low startup and operating currents, high-value resistors can be used in the startup circuit to minimize standby power dissipation. The 2263 provides comprehensive protection features, including cycle-by-cycle current limiting, over-temperature protection, overvoltage clamping, and VDD undervoltage lockout. The gate output is clamped to 16V to protect the power MOSFET gate.

Applications

Mobile phone chargers
Digital camera chargers
Power adapters
Battery chargers

Key features

Digital frequency dithering for improved EMI performance
Current sense input with leading-edge blanking
Slope compensation
Burst mode control for improved efficiency and optimized standby power consumption
Low startup current and low operating current
Gate output with voltage clamping
Soft-start to reduce MOSFET stress during power-up
Comprehensive protection features including: VDD UVLO with hysteresis, VDD OVP, cycle-by-cycle current limiting, current limit compensation for consistent output current across universal AC input, overload protection, OTP
300mA drive capability
