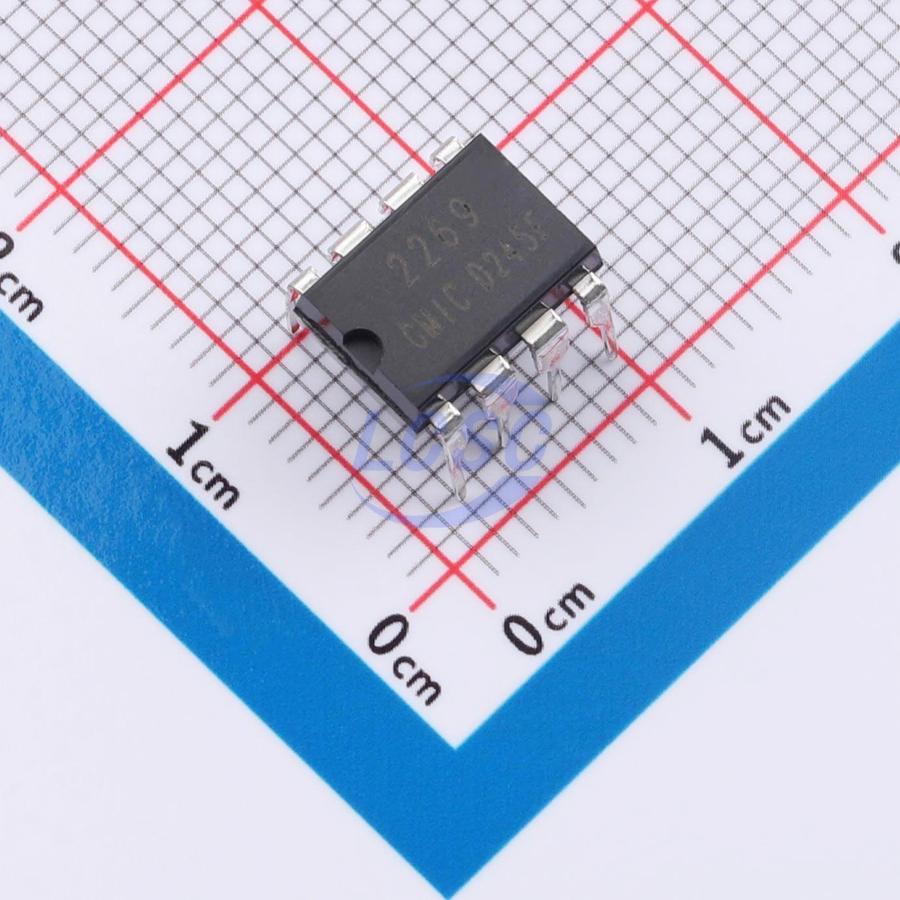

OB2269CBD

2269 is a high-performance, highly integrated current-mode PWM controller designed for medium-to-large offline flyback converter applications. The PWM switching frequency is internally trimmed to a precise range. To improve EMI performance, the IC integrates a frequency jitter function to reduce conducted EMI emissions from the power supply. The IC also integrates a constant power limiting module, enabling constant output power limiting across an input voltage range of 90VAC to 264VAC. Under light-load conditions, the green mode function continuously reduces the switching frequency. Under no-load conditions, the power supply enters burst mode, delivering excellent efficiency with no audio noise. This green mode function enables the power supply to meet international energy-saving requirements. The 2269 integrates UVLO, VDD OVP, soft-start, externally programmable OTP, cycle-by-cycle current limiting, OLP, open-pin protection, RI pin-to-GND short-circuit protection, gate clamp, VDD clamp, and leading-edge blanking. In this device, all protection functions operate in auto-recovery mode. The 2269 is available in SOP-8 and DIP-8 packages.

Applications

• AC/DC power adapters
• Open-frame switching power supplies
• Printer power supplies, scanner and motor drivers

Key features

• Built-in soft-start function
• Ultra-low startup current
• Frequency reduction and burst mode control for energy saving
• Built-in frequency dithering
• Programmable switching frequency
• Built-in synchronous slope compensation
• Cycle-by-cycle current limiting
• Open-pin protection
• High-voltage CMOS process with excellent ESD protection
• Current mode control
• Built-in leading-edge blanking
• Constant power limiting
• Audio-noise-free operation
• VDD overvoltage protection and clamping
• VDD undervoltage lockout
