OB2273MP

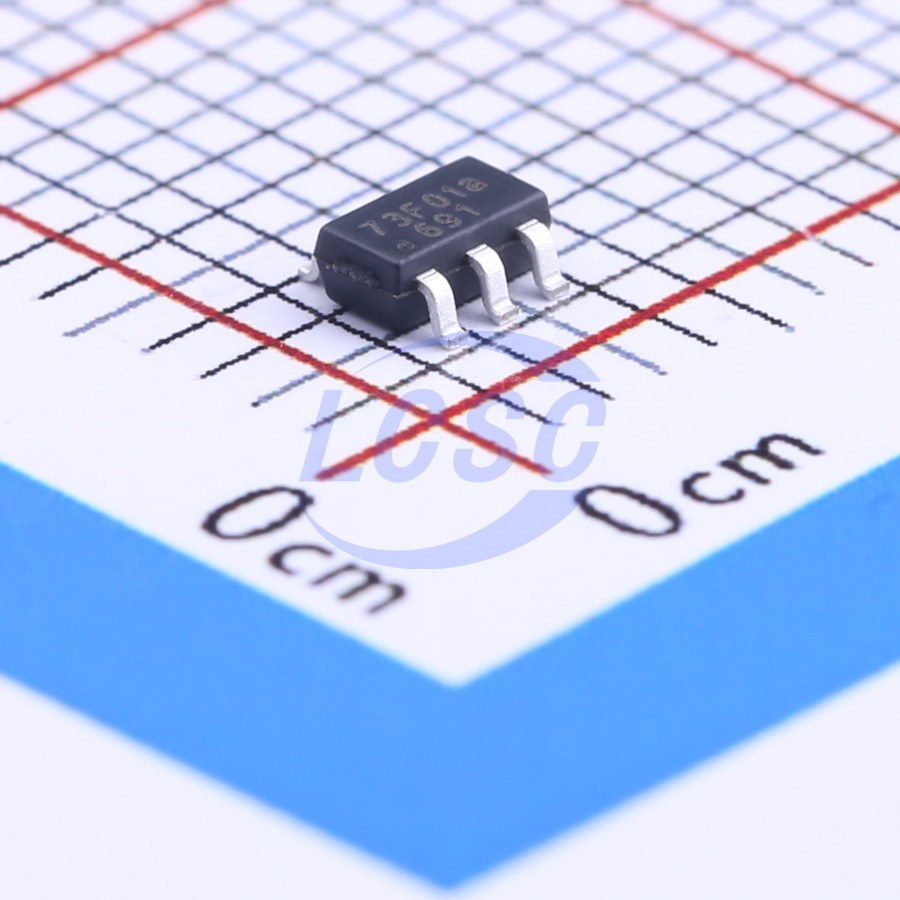

60kHz~70kHz 12V~25V Flyback SOT-23-6 AC DC Converters, Offline Switchers RoHS

SOT-23-6ROHS CompliantActive

High Performance Current Mode PWM Controller

Manufacturer: OB
Manufacturer part #: OB2273MP
Store part #: C138813
Package / case: SOT-23-6
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,195 in stock

#C138813

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹26.38	₹131.90
50+	₹19.99	₹999.50
150+	₹17.25	₹2,587.50
500+	₹13.83	₹6,915.00
3,000+	₹11.74	₹35,220.00
6,000+	₹10.82	₹64,920.00

Quantity (min 5, multiples of 5)

5 × ₹26.38

₹131.90

excl. GST

₹155.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OB2273MP

₹131.90 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 60kHz~70kHz
Voltage - Supply: 12V~25V
Features: Light load efficient mode;EMI optimization (spread spectrum);Audio noise elimination;Leading edge blanking;Slope compensation;Under-voltage lockout;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Topology: Flyback
Duty Cycle(Max): 85%
Working Mode: PWM Modulation
Feedback System: Secondary-Side Feedback

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

OB2273 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications. The ‘Extended burst mode’ control greatly reduces the standby power consumption and helps the design easily to meet the international power conservation requirements.

Applications

Battery Charger
Power Adapter
Set-Top Box Power Supplies
Open-frame SMPS

Key features

Power on Soft Start Reducing MOSFET Vds Stress
Frequency shuffling for EMI
Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design
Audio Noise Free Operation
Fixed 65KHZ Switching Frequency
Comprehensive Protection Coverage
VDD Under Voltage Lockout with Hysteresis (UVLO)
Cycle-by-cycle over current threshold setting for constant output power limiting over universal input voltage range
Overload Protection (OLP) with autorecovery
Over Temperature Protection (OTP) with latch shut down
VDD Over voltage Protection(OVP) with latch shut down
Adjustable OVP through external Zener
