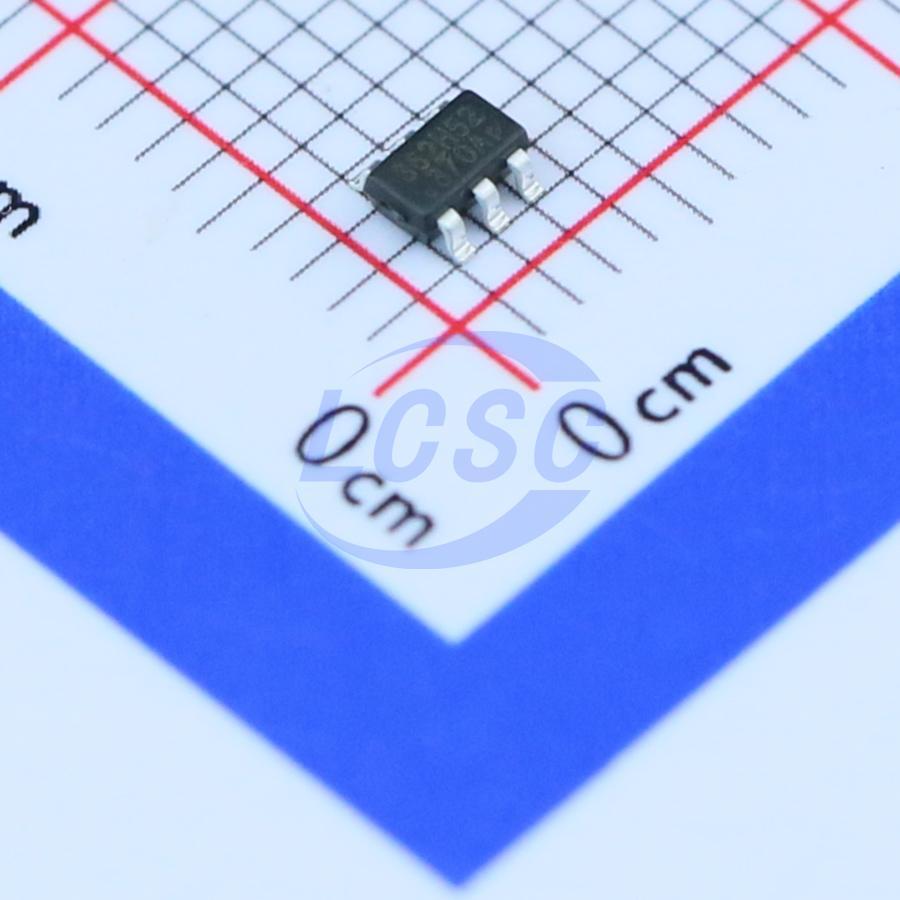

OB2362AMP
60kHz~70kHz 12V~26V Flyback SOT-23-6 AC DC Converters, Offline Switchers RoHS
SOT-23-6ROHS CompliantActive
Adaptive Multi-Mode PWM Controller
- Manufacturer
- OB
- Manufacturer part #
- OB2362AMP
- Store part #
- C112457
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,075 in stock
#C112457
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.39 | ₹96.95 |
| 50+ | ₹15.05 | ₹752.50 |
| 150+ | ₹13.19 | ₹1,978.50 |
| 500+ | ₹10.87 | ₹5,435.00 |
| 3,000+ | ₹9.83 | ₹29,490.00 |
| 6,000+ | ₹9.22 | ₹55,320.00 |
5 × ₹19.39
₹96.95
excl. GST
₹114.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OB2362AMP
₹96.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 60kHz~70kHz
- Voltage - Supply
- 12V~26V
- Topology
- Flyback
- Features
- Over Voltage Protection;Overtemperature protection (OTP);Under Voltage Protection;Over Current Protection
- Duty Cycle(Max)
- 80%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
OB2362A is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications. The ‘extended burst mode’ control greatly reduces the standby power consumption and helps the design easier to meet the international power conservation requirements.
Applications
- Offline AC/DC flyback converter for General power supply
- Power Adapter
Key features
- At full loading, the IC operates in fixed frequency (65KHz) mode.
- When the loading goes low, it operates in Green mode with valley switching for high power conversion efficiency.
- When the load is very small, the IC operates in ‘Extended Burst Mode’ to minimize the standby power loss.
- VCC low startup current and low operating current contribute to a reliable power on startup and low standby design.
- Offers comprehensive protection coverage with auto - recovery including Cycle - by - Cycle current limiting (OCP), over load protection (OLP), VCC under voltage lockout (UVLO), over temperature protection (OTP), and over voltage protection (OVP).
- Excellent EMI performance is achieved with On - Bright proprietary frequency shuffling technique.
- The tone energy at below 23KHz is minimized in the design and audio noise is eliminated during operation.
- Offered in SOT23 - 6 package.
