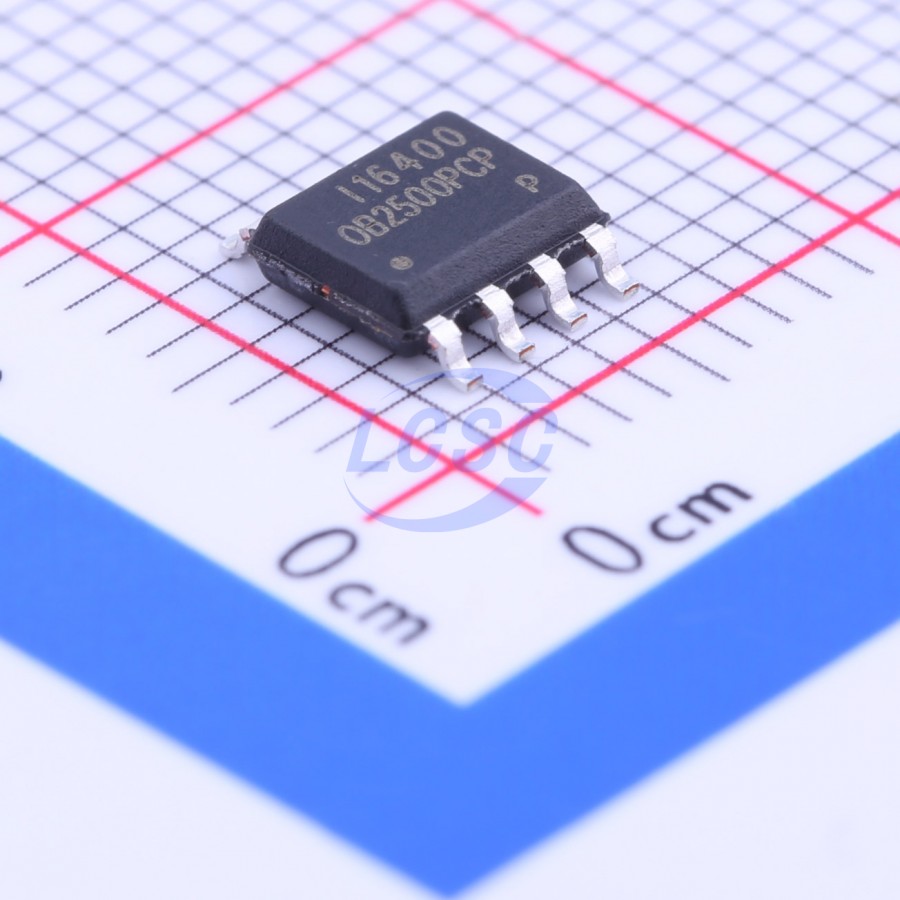

OB2500PCPA
2A 90kHz 650V 7V~25V Flyback SOP-7 AC DC Converters, Offline Switchers
SOP-7RoHSActive
High Precision CC/CV Primary-Side Power Switch
- Manufacturer
- OB
- Manufacturer part #
- OB2500PCPA
- Store part #
- C138832
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,505 in stock
#C138832
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.15 | ₹130.75 |
| 50+ | ₹20.27 | ₹1,013.50 |
| 150+ | ₹17.75 | ₹2,662.50 |
| 500+ | ₹14.61 | ₹7,305.00 |
| 2,500+ | ₹13.21 | ₹33,025.00 |
| 4,000+ | ₹12.36 | ₹49,440.00 |
5 × ₹26.15
₹130.75
excl. GST
₹154.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OB2500PCPA
₹130.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 2A
- Frequency - Switching
- 90kHz
- Voltage - Breakdown
- 650V
- Voltage - Supply
- 7V~25V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Feedback System
- Primary-side feedback
- Working Mode
- PFM Modulation;PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.095 g
Overview
OB2500P is a high performance offline PSR power switch for low power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated. OB2500P is a cost effective PSR power switch optimized for off-line low power AC/DC applications including battery chargers. It operates in primary side sensing and regulation, thus opto-coupler and TL431 are not required. Proprietary built-in CV and CC control can achieve high precision CC/CV control meeting most charger application requirements.
Applications
- Low Power AC/DC offline SMPS
- Cell Phone Charger
- Digital Cameras Charger
- Small Power Adapter
- Auxiliary Power for PC, TV etc.
- Linear Regulator/RCC Replacement
Key features
- Primary-side sensing and regulation without TL431 and opto-coupler
- High precision constant voltage and current regulation at universal AC input
- Multi-mode PWM/PFM operation for efficiency improving
- Integrated 2A 650V MOSFET
- Good dynamic response
- Programmable CV and CC regulation
- Built-in primary winding inductance compensation
- Programmable cable drop compensation
- No need for control loop compensation
- Audio noise free operation
- Built-in leading edge blanking (LEB)
- Ultra low start-up current and low operating current
- Comprehensive protection coverage with auto-recovery
- On-chip OTP and external OTP
- VDD over voltage protection
- VDD under voltage lockout with hysteresis (UVLO)
- Cycle-by-Cycle current limiting
- Feedback loop open protection
- Output short circuit protection
