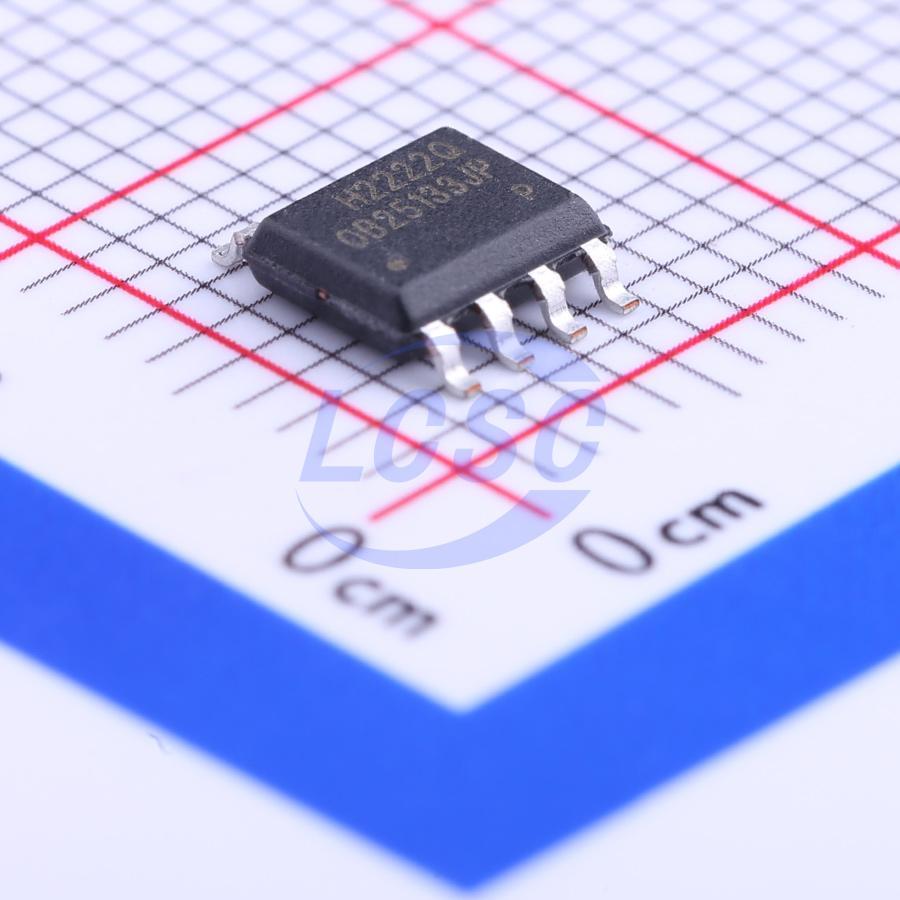

OB25133JPA

800V 5V~16V Flyback SOP-7 AC DC Converters, Offline Switchers

SOP-7RoHSActive

High Precision CC/CV Primary-Side PWM Power Switch

Manufacturer: OB
Manufacturer part #: OB25133JPA
Store part #: C131096
Package / case: SOP-7
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20,185 in stock

#C131096

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.33	₹76.65
50+	₹12.15	₹607.50
150+	₹10.54	₹1,581.00
500+	₹9.35	₹4,675.00
2,500+	₹8.12	₹20,300.00
4,000+	₹7.65	₹30,600.00

Quantity (min 5, multiples of 5)

5 × ₹15.33

₹76.65

excl. GST

₹90.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

OB25133JPA

₹76.65 for 5 + GST

Specifications

Operating Temperature: -20℃~+85℃
Voltage - Breakdown: 800V
Voltage - Supply: 5V~16V
Topology: Flyback
Features: Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
Working Mode: PFM Modulation;PWM Modulation
Feedback System: Primary-side feedback

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.095 g

Overview

OB2513x is a cost effective PSR power switch optimized for off-line low power AC/DC applications including battery chargers. It operates in primary side sensing and regulation, thus opto-coupler and TL431 are not required. Proprietary built-in CV and CC control can achieve high precision CC/CV control meeting most charger application requirements.

Applications

Low Power AC/DC offline SMPS for Cell Phone Charger
Digital Cameras Charger
Small Power Adapter
Auxiliary Power for PC, TV etc.
Linear Regulator/RCC Replacement

Key features

High performance offline PSR power switch
Operates in primary-side sensing and regulation, eliminating opto-coupler and TL431
Proprietary Constant Voltage (CV) and Constant Current (CC) control integrated
Current and output power setting adjustable externally by sense resistor Rs at CS pin in CC control
Multi-mode operations utilized in CV control for high performance and high efficiency
Built-in cable drop compensation for good load regulation
Operates in PFM in CC mode and at large load condition, operates in PWM with frequency reduction at light/medium load
Very low operation current, can achieve less than 75mW standby power
Comprehensive protection coverage with auto-recovery features including Cycle-by-Cycle current limiting, VDD over voltage protection, short circuit protection, built-in leading edge blanking, VDD under voltage lockout (UVLO), OTP etc.
Offered in SOP7 package
