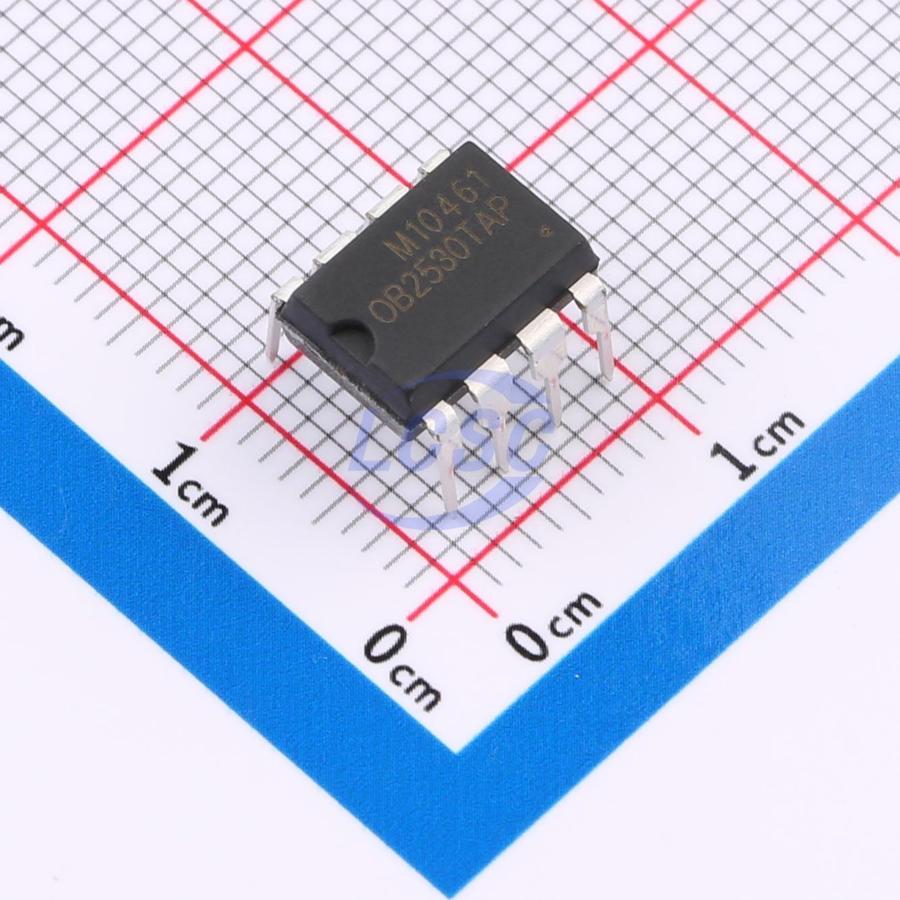

OB2530TAP
72kHz 8V~25V 620V Flyback DIP-8 AC DC Converters, Offline Switchers
DIP-8RoHSActive
High Precision CC/CV Primary-Side Power Switch
- Manufacturer
- OB
- Manufacturer part #
- OB2530TAP
- Store part #
- C138849
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,622 in stock
#C138849
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.37 | ₹56.37 |
| 10+ | ₹51.32 | ₹513.20 |
| 50+ | ₹48.97 | ₹2,448.50 |
| 100+ | ₹46.26 | ₹4,626.00 |
| 500+ | ₹44.99 | ₹22,495.00 |
| 1,000+ | ₹44.28 | ₹44,280.00 |
1 × ₹56.37
₹56.37
excl. GST
₹66.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
OB2530TAP
₹56.37 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Frequency - Switching
- 72kHz
- Voltage - Supply
- 8V~25V
- Voltage - Breakdown
- 620V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
- Feedback System
- Primary-side feedback
- Working Mode
- PFM Modulation;PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
OB2530T is a high performance offline PSR power switch for low power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated. OB2530T is a cost effective PSR power switch optimized for off-line low power AC/DC applications including battery chargers. It operates in primary side sensing and regulation, thus opto-coupler and TL431 are not required. Proprietary built-in CV and CC control can achieve high precision CC/CV control meeting most charger application requirements.
Applications
- Low Power AC/DC offline SMPS
- Cell Phone Charger
- Digital Cameras Charger
- Small Power Adapter
- Auxiliary Power for PC, TV etc.
- Linear Regulator/RCC Replacement
Key features
- Primary-side sensing and regulation without TL431 and opto-coupler
- High precision constant voltage and current regulation at universal AC input
- Multi-mode PWM/PFM operation for efficiency improving
- Integrated Rdson 2Ω MOSFET
- Good dynamic response
- Programmable CV and CC regulation
- Built-in primary winding inductance compensation
- Programmable cable drop compensation
- No need for control loop compensation
- Audio noise free operation
- Built-in leading edge blanking (LEB)
- Ultra low start-up current and low operating current
- Comprehensive protection coverage with auto-recovery
- VDD over voltage protection
- VDD under voltage lockout with hysteresis (UVLO)
- Cycle-by-Cycle current limiting
- Feedback loop open protection
- Output short circuit protection
- On-chip OTP
