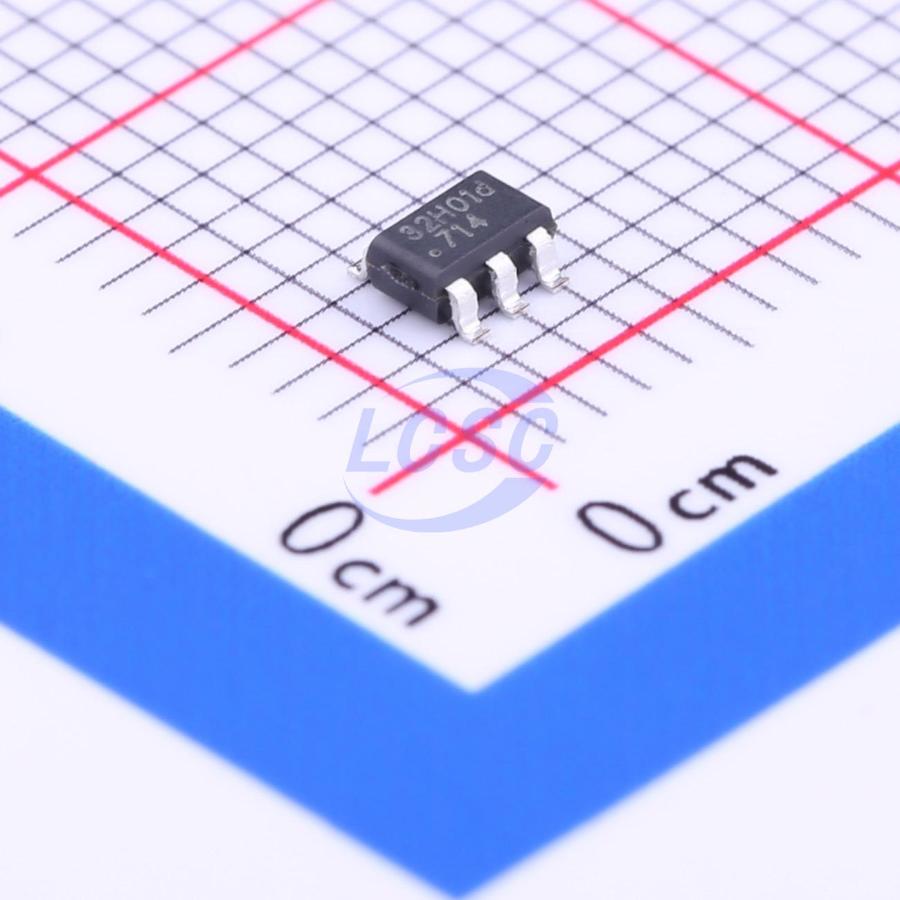

OB2532MP

OB2532 is a high performance offline PWM controller for low power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated. In CC control, the current and output power setting can be adjusted externally by the sense resistor Rs at CS pin. In CV control, multi-mode operations are utilized to achieve high performance and high efficiency. In addition, good load regulation is achieved by the built-in cable drop compensation. Device operates in PFM in CC mode as well at large load condition and it operates in PWM with frequency reduction at light/medium load. OB2532 offers power on soft start control and protection coverage with auto-recovery features including Cycle-by-Cycle current limiting, VDD OVP, VDD clamp and UVLO. Excellent EMI performance is achieved with On-Bright proprietary frequency shuffling technique. High precision constant voltage (CV) and constant current (CC) can be achieved by OB2532.

Applications

• Cell Phone Charger
• Digital Cameras Charger
• Small Power Adapter
• Auxiliary Power for PC, TV etc.
• Linear Regulator/RCC Replacement

Key features

• ±5% Constant Voltage Regulation at Universal AC input
• High Precision Constant Current Regulation at Universal AC input
• Primary-side Sensing and Regulation Without TL431 and Opto-coupler
• Programmable CV and CC Regulation
• Adjustable Constant Current and Output Power Setting
• Built-in Secondary Constant Current Control with Primary Side Feedback
• Built-in Adaptive Current Peak Regulation
• Built-in Primary winding inductance compensation
• Programmable Cable drop Compensation
• Power on Soft-start
• Built-in Leading Edge Blanking (LEB)
• Cycle-by-Cycle Current Limiting
• VDD Under Voltage Lockout with Hysteresis (UVLO)
• VDD OVP
• VDD Clamp
