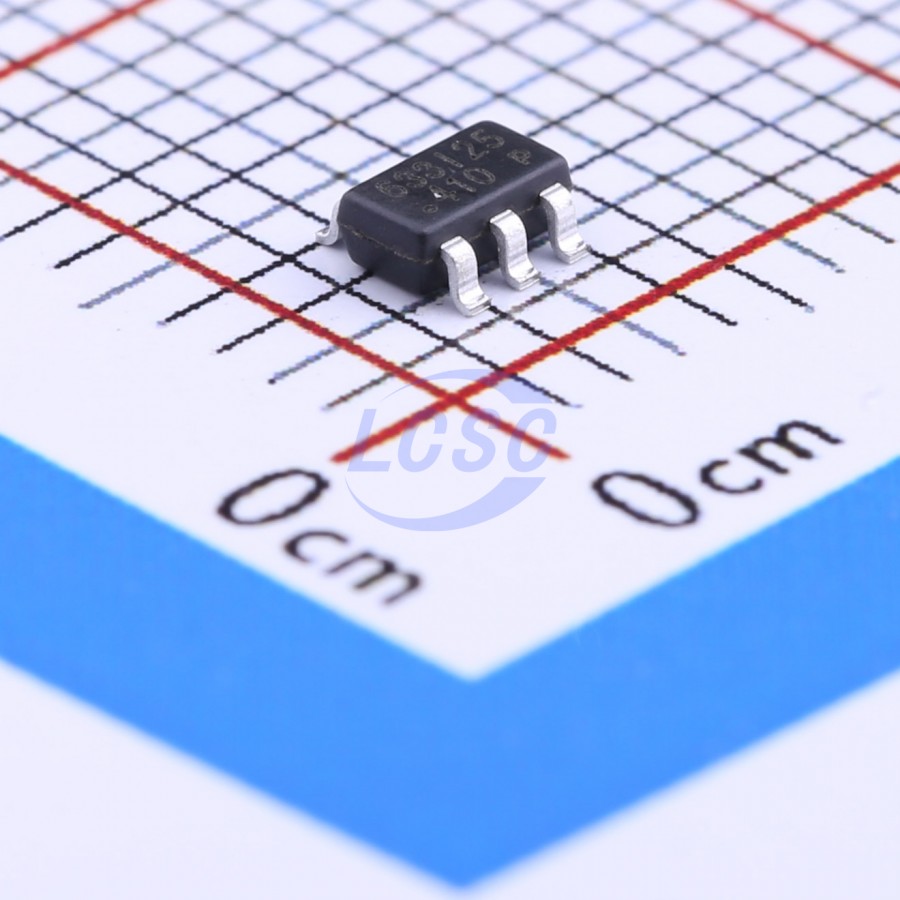

OB2633MP
55kHz~75kHz 12V~48V Flyback SOT-23-6 AC DC Converters, Offline Switchers RoHS
SOT-23-6ROHS CompliantActive
High Efficiency, Adaptive Multi-Mode PWM Controller
- Manufacturer
- OB
- Manufacturer part #
- OB2633MP
- Store part #
- C138866
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C138866
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.90 | ₹189.50 |
| 50+ | ₹29.77 | ₹1,488.50 |
| 150+ | ₹26.27 | ₹3,940.50 |
| 500+ | ₹21.92 | ₹10,960.00 |
| 3,000+ | ₹19.99 | ₹59,970.00 |
| 6,000+ | ₹18.83 | ₹1,12,980.00 |
5 × ₹37.90
₹189.50
excl. GST
₹223.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OB2633MP
₹189.50 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Frequency - Switching
- 55kHz~75kHz
- Voltage - Supply
- 12V~48V
- Topology
- Flyback
- Features
- Overtemperature protection (OTP);Over Current Protection;Short Circuit Protection;Under Voltage Protection;Over Voltage Protection
- Feedback System
- Secondary-Side Feedback
- Working Mode
- QR;PFM Modulation;CCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
OB2633 is a highly integrated QuasiResonant(QR) controller with adaptive multi - mode regulation, optimized for high performance, low EMI, low standby power consumption and wide output voltage range Quick Charger(QC) solutions, together with secondary - side controllers, such as OB200x and OB2603x supporting Qualcomm Quick Charge QC3.0 protocol. The controller is as well compatible with cost effective offline flyback converter applications covering a wide output range. The ‘Extended burst mode’ control greatly reduces the standby power consumption and helps the design easily to meet the international power conservation requirements.
Applications
- Offline AC/DC flyback converter for Quick - charging AC/DC charges
- AC/DC Adapters with wide output range
Key features
- Very wide range of supply voltage
- 75KHz maximum clamping frequency in QR mode @ Full Load in high line voltage
- 55KHz minimum clamping frequency in CCM mode @ Heavy Load in low line voltage
- Valley switching operation @ Green mode
- Burst Mode @ Light Load & No Load
- Power on soft start reducing MOSFET Vds stress
- Extended burst mode control for improved efficiency and low standby power
- Soft Start for elimination output over shoot
- Adaptive loop gain compensation with Iovp current detection
- Adaptive Frequency shuffling for EMI
- Low operating current at no/light load
- Audio noise free operation
- Comprehensive auto - recovery protection
- VDD under voltage lockout with hysteresis (UVLO)
- Cycle - by - cycle over current protection (OCP)
- Overload protection (OLP)
- Over temperature protection (OTP)
- VDD over voltage protection
- Output over voltage protection
- Output short protection (SCP)
- Output under voltage protection (UVP)
- Output diode short protection
