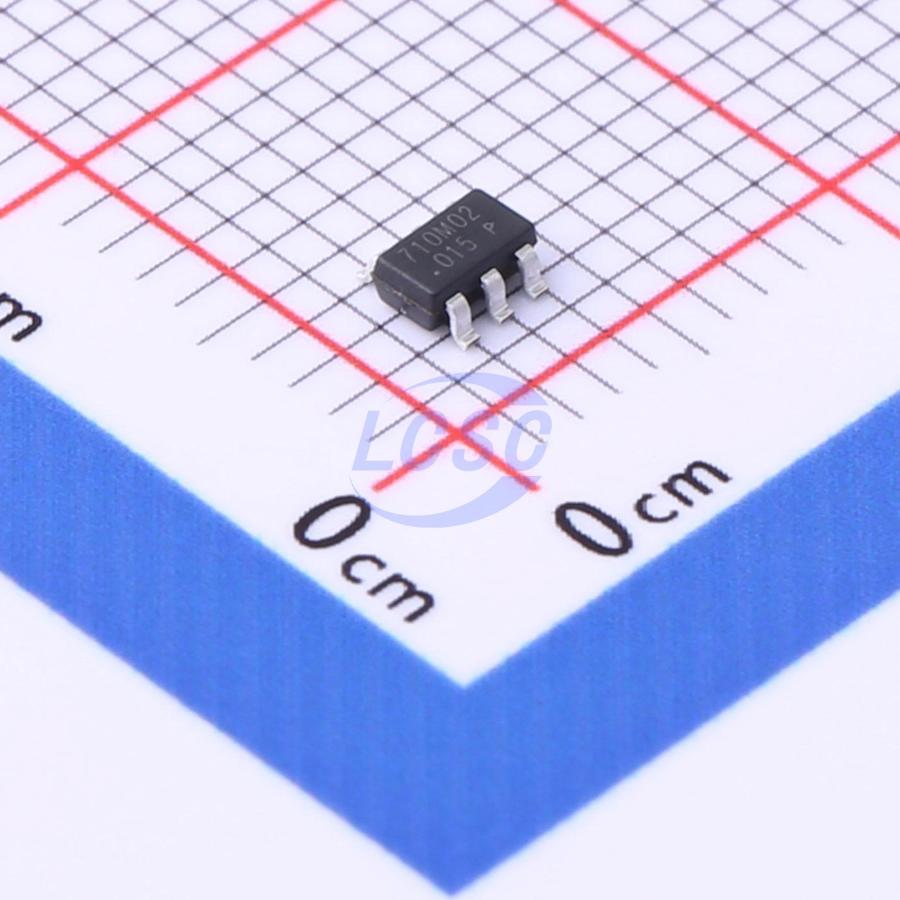

OB2710MP

12V~26V Flyback SOT-23-6 AC DC Converters, Offline Switchers RoHS

SOT-23-6ROHS CompliantActive

Adaptive Multi-Mode PWM Controller

Manufacturer: OB
Manufacturer part #: OB2710MP
Store part #: C2827748
Package / case: SOT-23-6
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,645 in stock

#C2827748

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹22.15	₹110.75
50+	₹17.16	₹858.00
150+	₹15.03	₹2,254.50
500+	₹12.37	₹6,185.00
3,000+	₹11.18	₹33,540.00
6,000+	₹10.48	₹62,880.00

Quantity (min 5, multiples of 5)

5 × ₹22.15

₹110.75

excl. GST

₹130.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OB2710MP

₹110.75 for 5 + GST

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 100kHz;77kHz;85kHz;65kHz;25kHz
Voltage - Supply: 12V~26V
Topology: Flyback
Features: Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 80%
Feedback System: Secondary-Side Feedback
Working Mode: QR;CCM;PFM Modulation

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

OB2710 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications. At normal load condition, it operates in fixed frequency mode. When the loading goes low, it operates in PFM mode for high power conversion efficiency. When the load is very small, the IC operates in ‘Extended Burst Mode’ to minimize the standby power loss. As a result, high conversion efficiency can be achieved in the whole loading range. VCC low startup current and low operating current contribute to a reliable power on startup and low standby design. OB2710 offers Vth_oc compensation. OB2710 offers comprehensive protection coverage with auto-recovery including Cycle-byCycle current limiting (OCP), over load protection (OLP), AC brownout protection, VCC under voltage lockout (UVLO), external over temperature protection (OTP), over voltage protection (OVP) and short protection(SCP). Excellent EMI performance is achieved with On-Bright proprietary frequency shuffling technique. OB2710 is offered in SOT23-6 package.
