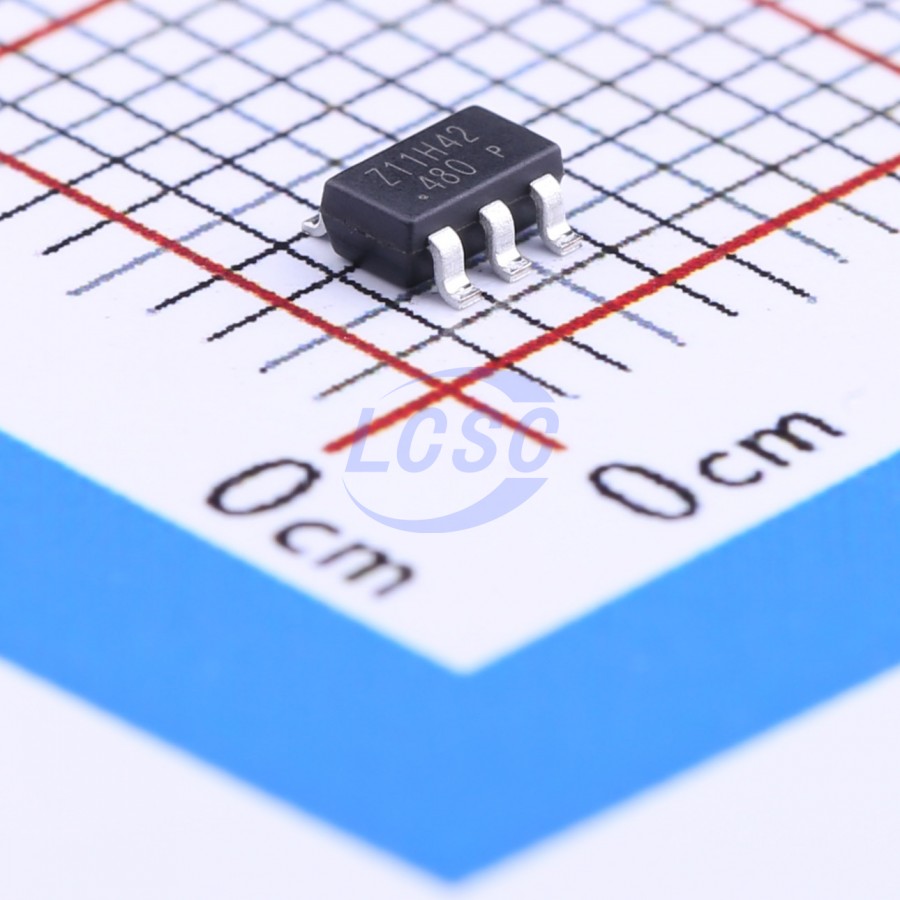

OBGZ11MP

60kHz~70kHz 12V~26V Flyback SOT-23-6 AC DC Converters, Offline Switchers

SOT-23-6RoHSActive

Manufacturer: OB
Manufacturer part #: OBGZ11MP
Store part #: C138870
Package / case: SOT-23-6
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,725 in stock

#C138870

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹14.23	₹71.15
50+	₹11.89	₹594.50
150+	₹10.71	₹1,606.50
500+	₹9.84	₹4,920.00
3,000+	₹9.14	₹27,420.00
6,000+	₹8.79	₹52,740.00

Quantity (min 5, multiples of 5)

5 × ₹14.23

₹71.15

excl. GST

₹83.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OBGZ11MP

₹71.15 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 60kHz~70kHz
Voltage - Supply: 12V~26V
Topology: Flyback
Features: Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 80%
Working Mode: PWM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

OBGZ11 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications. The ‘extended burst mode’ control greatly reduces the standby power consumption and helps the design easier to meet the international power conservation requirements.

Applications

Printer
Storage power supply
Power Adapter

Key features

PWM switching frequency at normal operation is internally fixed and is trimmed to tight range.
At no load or light load condition, the IC operates in extended ‘burst mode’ to minimize switching loss.
VCC low startup current and low operating current contribute to a reliable power on startup and low standby design.
Offers comprehensive protection coverage with auto - recovery including Cycle - by - Cycle current limiting (OCP), over load protection (OLP), VCC under voltage lockout (UVLO), over temperature protection (OTP), and over voltage protection (OVP).
Excellent EMI performance is achieved with On - Bright proprietary frequency shuffling technique.
The tone energy at below 25KHz is minimized in the design and audio noise is eliminated during operation.
Offered in SOT23 - 6 package.
