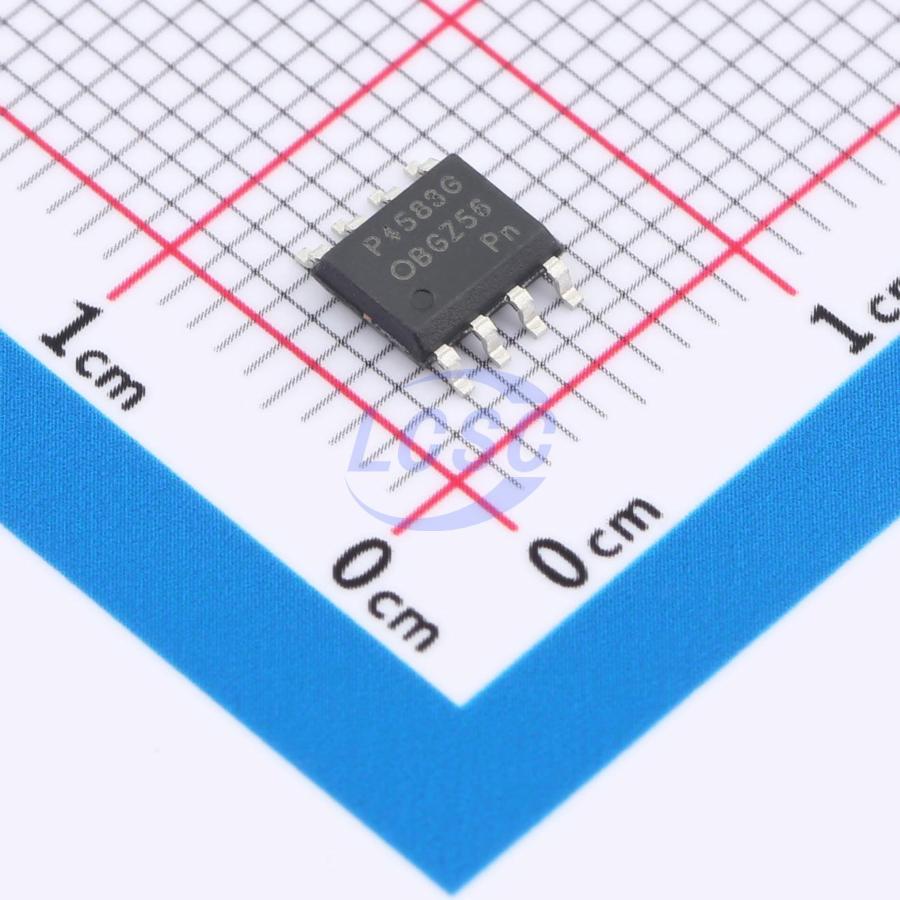

OBGZ56COPA

90kHz 5V~16V 750V Flyback SOP-8 AC DC Converters, Offline Switchers

SOP-8RoHSActive

High Precision CC/CV Primary-Side PWM Power Switch

Manufacturer: OB
Manufacturer part #: OBGZ56COPA
Store part #: C47120773
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,290 in stock

#C47120773

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
5+	₹12.54	₹62.70
50+	₹9.79	₹489.50
150+	₹8.41	₹1,261.50
500+	₹7.38	₹3,690.00
2,500+	₹6.56	₹16,400.00
4,000+	₹6.15	₹24,600.00

Quantity (min 5, multiples of 5)

5 × ₹12.54

₹62.70

excl. GST

₹73.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

OBGZ56COPA

₹62.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃
Frequency - Switching: 90kHz
Voltage - Supply: 5V~16V
Voltage - Breakdown: 750V
Topology: Flyback
Features: Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Feedback System: Primary-side feedback
Working Mode: QR;PFM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.189 g

Overview

OBGZ56 is a high-performance offline primary-side feedback power switch designed for low-power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation mode, eliminating the need for an optocoupler and TL431. Its proprietary constant voltage and constant current control functions are illustrated in the figure. In CC control, the current and output power setpoints can be externally adjusted via the sense resistor Rs on the CS pin. In CV control, multi-mode operation is employed to achieve high performance and efficiency. In addition, excellent load regulation is achieved through built-in cable voltage drop compensation. The device operates in pulse frequency modulation mode under CC mode and heavy load conditions, and in PWM with frequency reduction mode under light/medium load conditions. The chip features an extremely low operating current, enabling standby power consumption below 75mW. OBGZ56 offers comprehensive protection features with auto-recovery capability, including cycle-by-cycle current limiting, VDD overvoltage protection, short-circuit protection, built-in leading-edge blanking, VDD undervoltage lockout, and overtemperature protection. OBGZ56 is available in an SOP8 package.
