OCXDatasheet (PDF)

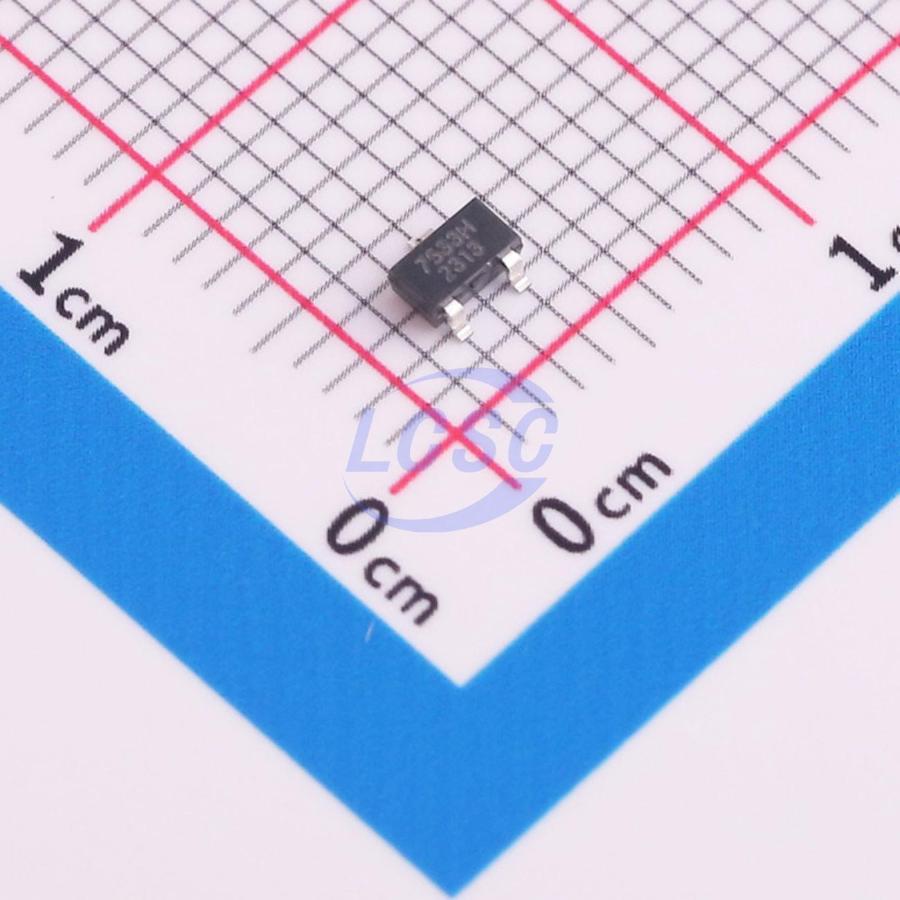

OC7533
Linear Voltage Regulator IC Fixed 150mA SOT23-3
SOT23-3ROHS CompliantActive
40 V, 150 mA Low Dropout (LDO) Linear Regulator
- Manufacturer
- OCX
- Manufacturer part #
- OC7533
- Store part #
- C6798397
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C6798397
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.02 | ₹45.10 |
| 50+ | ₹7.12 | ₹356.00 |
| 150+ | ₹6.16 | ₹924.00 |
| 500+ | ₹5.45 | ₹2,725.00 |
| 3,000+ | ₹4.87 | ₹14,610.00 |
| 6,000+ | ₹4.59 | ₹27,540.00 |
5 × ₹9.02
₹45.10
excl. GST
₹53.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OC7533
₹45.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Applications
- Portable battery-powered devices
- Ultra-low-power microcontrollers
- Laptop computers
Key features
- The OC75XX series are LDO linear voltage regulators featuring high input voltage capability, low dropout, ultra-low quiescent current, and compact packaging.
- Quiescent current as low as 3uA, ideal for battery-powered devices.
- Over an input voltage range of 3.5V to 40V and load conditions of 0~150mA, stability requirements are easily met with various types of output capacitors, including small ceramic capacitors.
- Various standard output voltage options available, such as 2.5V, 3V, 3.3V, and 5V.
- 3uA quiescent current
- ±2% output accuracy
- 150mA output current (VCC = 4.5V, VOUT = 3.3V)
- 3.5V to 40V input voltage range
- Low dropout: 600mV@100mA
- Fixed output voltages: 2.5V, 3V, 3.3V, 5V
- Output stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
