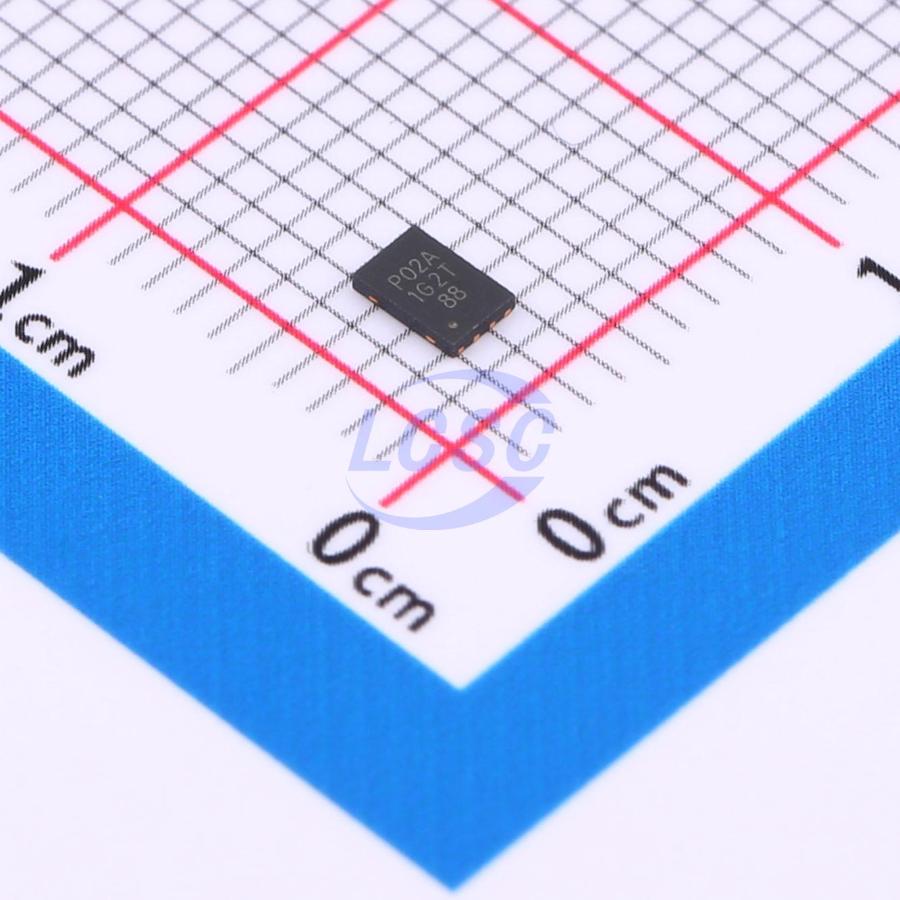

P24C02A-UNH-MIR
₹39.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
P24C02A is a 2-Kbit I²C-compatible serial EEPROM device. It contains a 256×8-bit memory array, organized as 8-byte pages.
Key features
- Single supply voltage with high-speed operation
- Minimum operating voltage down to 1.6V
- 1 MHz clock supported at 2.5V to 5.5V
- 400 kHz clock supported at 1.7V to 2.5V
- Low-power CMOS technology
- Maximum read current 400uA
- Maximum write current 1.6mA
- Schmitt trigger inputs with filtering for noise suppression
- Sequential and random read modes supported
- Page write mode with partial page write capability
- Write protection for entire memory array
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: >1 million write cycles
- Data retention: >100 years
- ESD HBM: 4KV
- Latch-up immunity: ±200mA
- Packages: PDIP, SOP, TSSOP, UDFN, SOT23-5, and TSOT23-5
