PUYA

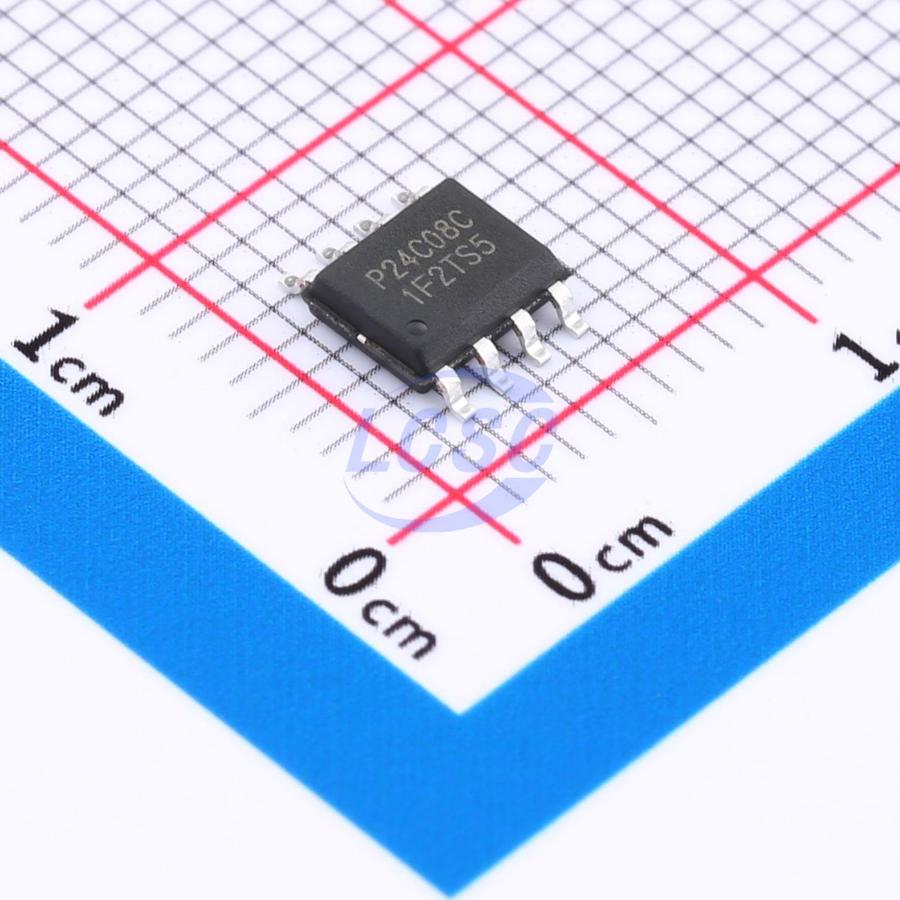

P24C08C-SSH-MIR
8Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
I²C-Compatible 8Kbit Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C2977251
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.06 | ₹75.30 |
| 50+ | ₹12.45 | ₹622.50 |
| 150+ | ₹11.14 | ₹1,671.00 |
| 500+ | ₹10.16 | ₹5,080.00 |
| 2,500+ | ₹8.80 | ₹22,000.00 |
| 4,000+ | ₹8.40 | ₹33,600.00 |
5 × ₹15.06
₹75.30
excl. GST
₹88.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P24C08C-SSH-MIR
₹75.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The P24C02C/P24C04C/P24C08C/P24C16C is 2/4/8/16-Kbit I²C -compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 256/512/1024/2048x8 bits, which is 16-byte per page. P24C02C/P24C04C/P24C08C/P24C16C provides the following devices for different application.
Key features
- Single Supply Voltage and High Speed
- Minimum operating voltage down to 1.7V
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 2.5V
- Low power CMOS technology
- Read current 400uA, maximum
- Write current 1.6mA, maximum
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential & Random Read Features
- Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Additional Write Lockable Page and 128-bit Serial Number
- Self-timed Write Cycle (5ms maximum)
- High Reliability Endurance: >1 Million Write Cycles
- Data Retention: >100 Years
- HBM: 6KV
- Latch up Capability: +/-200mA (25℃ & 125℃)
- Package: PDIP-8, SOP-8, TSSOP-8, DFN-8/UDFN-8, SOT23-5
