PUYA

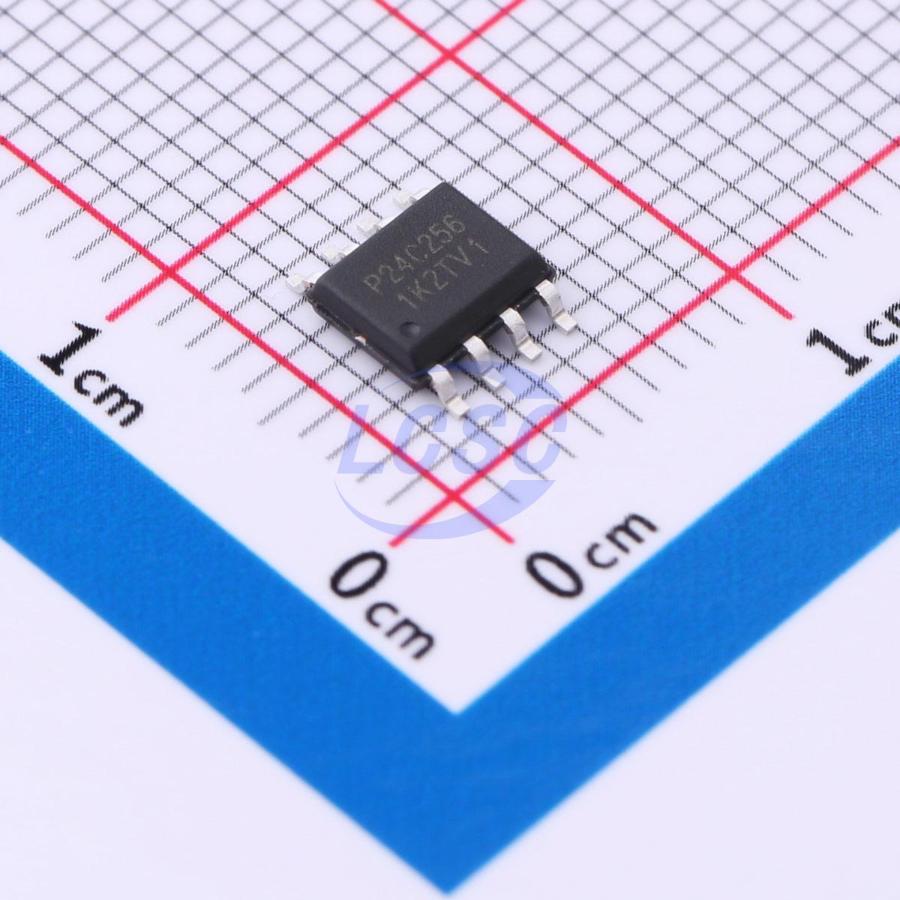

P24C256B-SSH-MIR
256Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69,025 in stock
#C5263811
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.42 | ₹157.10 |
| 50+ | ₹25.00 | ₹1,250.00 |
| 150+ | ₹22.25 | ₹3,337.50 |
| 500+ | ₹18.81 | ₹9,405.00 |
| 2,500+ | ₹16.52 | ₹41,300.00 |
| 4,000+ | ₹15.60 | ₹62,400.00 |
5 × ₹31.42
₹157.10
excl. GST
₹185.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P24C256B-SSH-MIR
₹157.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Noise suppression function;Built-in power-on reset (POR);Hardware write protection function;Page write protection function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The P24C256B is I²C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 256 Kbits (32 Kbytes), which is organized in 64 bytes per page.
Key features
- Single Supply Voltage and High Speed Mode
- Minimum operating voltage down to 1.7V
- 1 MHz clock from 2.5V to 5.5V
- 400 kHz clock from 1.7V to 5.5V
- Low power CMOS technology
- Read current 0.2 mA (400 kHz, typical)
- Write current 0.8 mA (400 kHz, typical)
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential & Random Read Features
- 64 bytes Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Additional Write Lockable Page
- Self-timed Write Cycle (5ms maximum)
- High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- HBM: 6 kV
- Latch up Capability: +/- 200mA (25C)
- Package: PDIP8, SOP8(150mil), MSOP8, TSSOP8, DFN8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P24C256B-SSH-MIT#C7466806PUYA · SOP-8 | PUYA | SOP-8 | 88 | ₹30.26 · 88 in stock | View |
