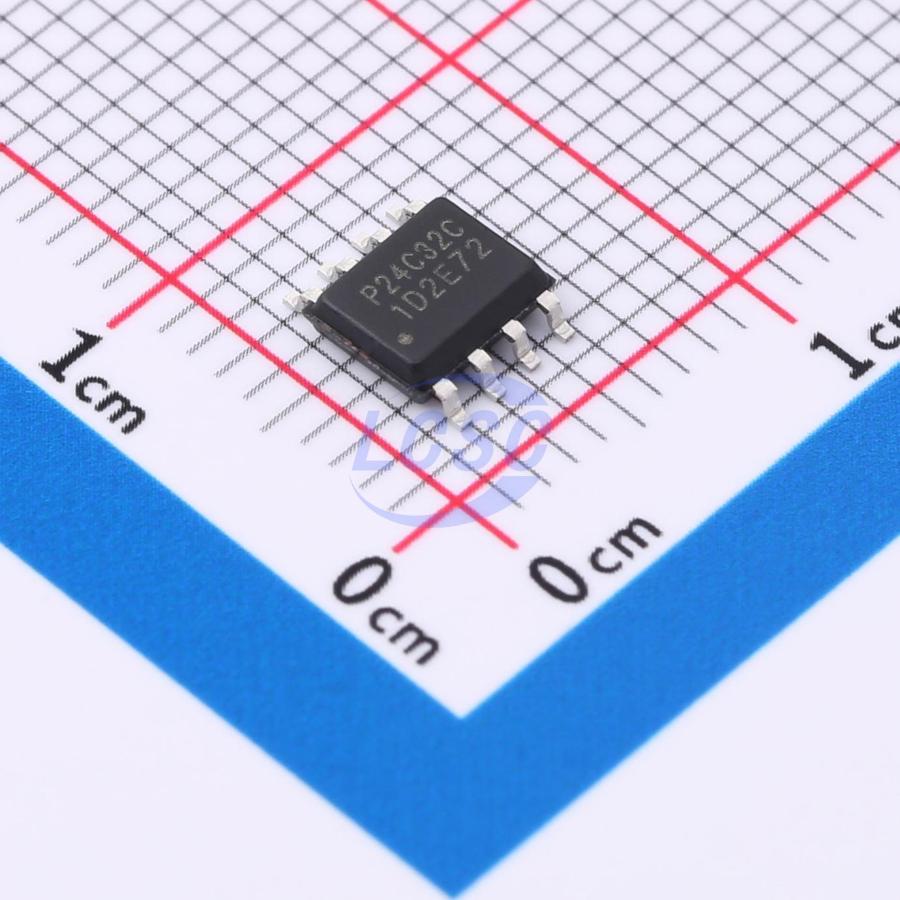

P24C32C-SSH-MIR

The P24C32C is a 32-Kbit I²C -compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 4096 x 8 bits, which is organized in 32-byte per page. P24C32C provides the following devices for different application.

Key features

• Single Supply Voltage and High Speed
• Minimum operating voltage down to 1.7V
• 1 MHz clock from 2.5V to 5.5V
• 400kHz clock from 1.7V to 2.5V
• Low power CMOS technology
• Read current 400uA, maximum
• Write current 1.6mA, maximum
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Sequential & Random Read Features
• 32 byte Page Write Modes, Partial Page Writes Allowed
• Write protect of the whole memory array
• Additional Write Lockable Page
• Additional 128-bit Serial Number
• Self-timed Write Cycle (5ms maximum)
• High Reliability
• HBM: >6KV
• Endurance: > 1 Million Write Cycles
• Data Retention: >100 Years
• LATCH UP Capability: +/-200mA
• Package: PDIP, SOP, TSSOP, DFN and SOT23-5
